| Catalog | Series | Reference | EAN13 code | Color | ||||
|---|---|---|---|---|---|---|---|---|
| CONALUX | 601 | 5601-197W6K (1214301619) | 8435115986543 | Black | ||||

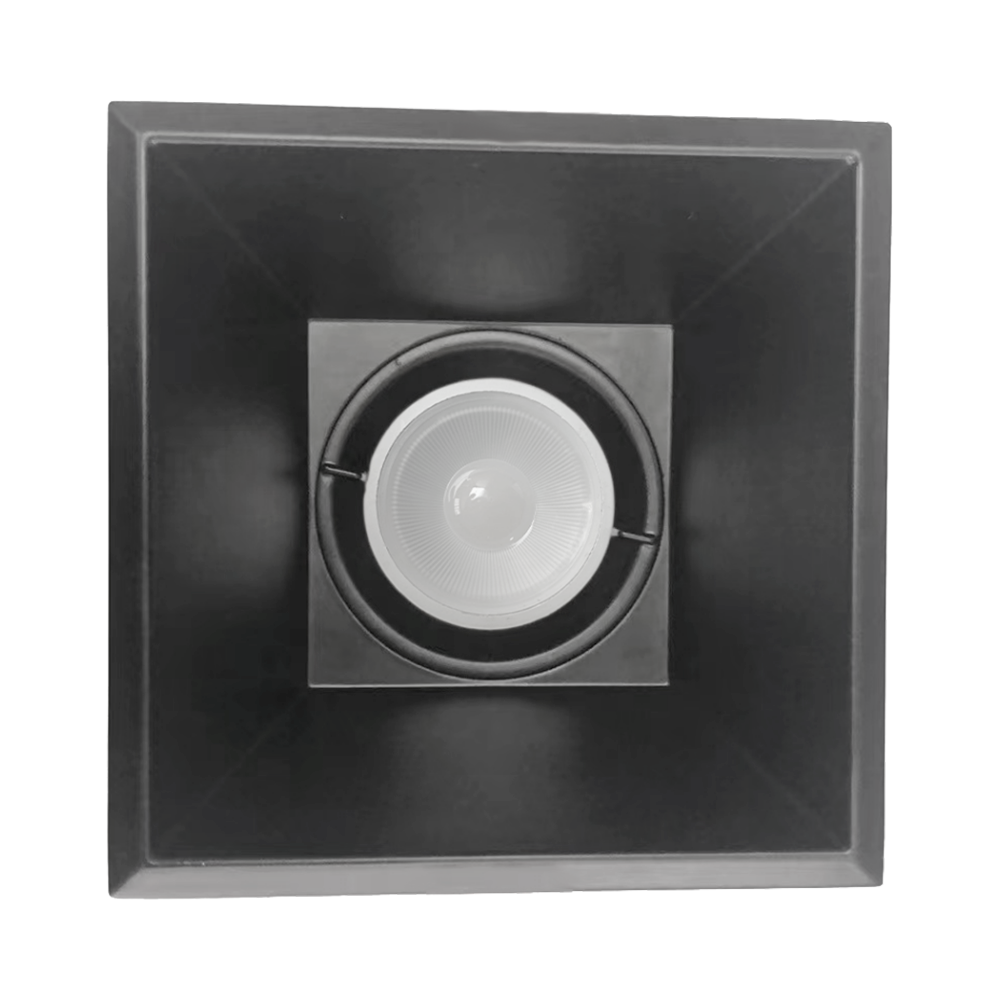

Recessed light model 601 finish black, power of 7 W, colour temperature 6400 K (cold light), luminous flux 520 lm, opening angle 110°, minimum voltage 200 V, size 102 x 102 x 53 mm, for a recess of 92 x 90 mm, weight 180 g, made of aluminium. With GU10 lamp included. | ||||||||
| Material | Aluminium |
| Frame material | Aluminium |
| Lighting technology | Led |
| Kind of product | Containing product |
| Type of lamp | GU10 |
| Lampholder | GU10 |
| LED type | SMD |
| Replaceable lamp | By user |
| Driver/equipment included | Si |
| Anchoring included | Yes |
| Life time | 30.000 h |
| Warranty | 3 years |
| Type of Installation | Empotrar |
| Format | Cuadrado |
| Outside measurement | 102 mm |
| Cutting measure | 90 mm |
| High/Depth | 120 mm |
| Weight | 240 gr |
| Luminous flux | 520 lm |
| Luminous efficiency | 74,29 lm/W |
| Optical Symmetry | Simétrica |
| Opening angle | 110 º |
| Color temperature | 6.400 ºK |
| Chromatic reproduction index | >81 |
| Movement | Fixed |
| Lighting consumption | 7 W |
| Voltage | 200 - 230 V |
| Frequency | 50 - 60 Hz |
| Power factor | 0,90 |
| Insulation class | Clase 2 |
| Degree of IP protection | IP20 |
| CE marking | Si |
| RoHS compliant | Si |
| Selective collection | Si |
