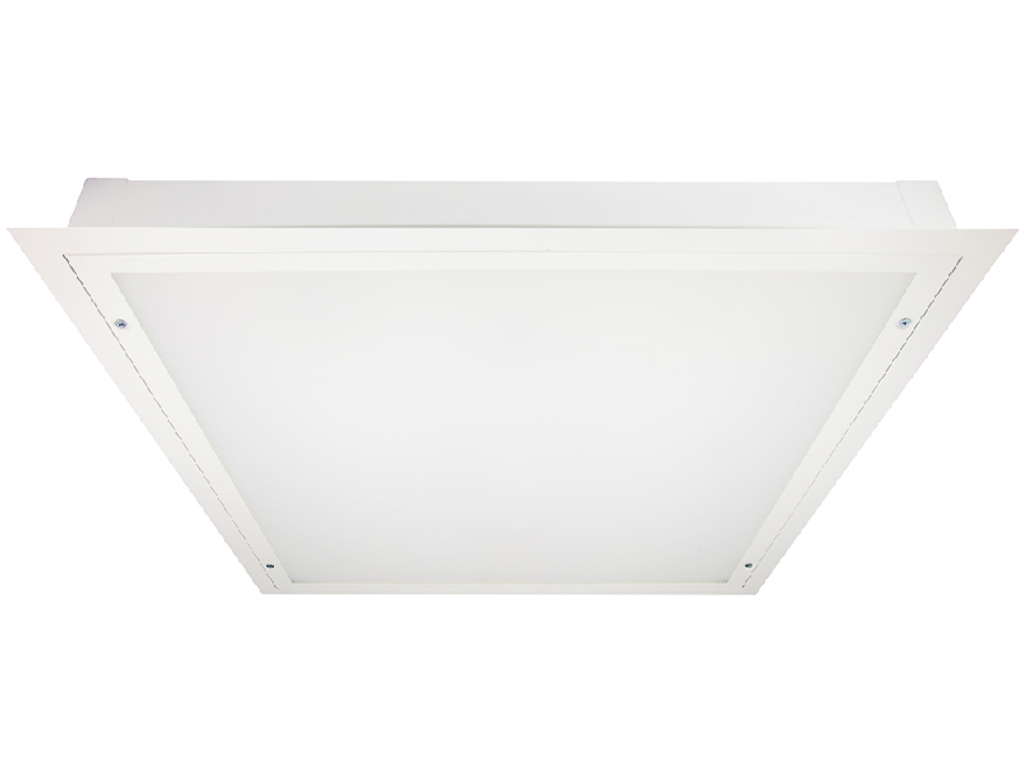

ASEPTIC REGULAR PANEL 2x12W 5000K 635x335mm IP66
CatalogSeriesReferenceColorBIM object
LEDASEPTIC REGULAR61921250BlancoBIM object
Family of recessed luminaires for sandwich panel ceilings with light sources specially designed to achieve greater uniformity and not create shadows. Recordable from the bottom. The body and diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanes, hydrogen peroxide, bactilysine, surfalyse, etc... Specially designed to illuminate super aseptic spaces up to Class A, such as kitchens, clean rooms, laboratories, handling areas, etc. The diffuser is mounted on a frame, it can be opal or transparent. It is fixed by four screws to the luminaire. Light source: Lightbar linear module or SMD LED panel and integrated driver. SV0 optic: Frost White Special LED diffuser, guarantees great visual comfort and optimal light distribution. Accessories: RA (1-10V analog regulation), RDali (Dali Digital Regulation), Light sensor, 1 hour emergency kit, etc...
MaterialChapa Acero
Diffuser materialPolicarbonato Frost Polar Opal
Frame materialChapa Acero
Reflector materialAluminio
Color lamp/applicationBlanco frío
Lighting technologyLed
Kind of productContaining product
Contained light source2 x
Number of lamps2 (included)
Type of lampMódulo LED
LED typePanel SMD PCBP
Number of LEDs88
Replaceable lampNot
Driver/equipment includedSi
Type driver/equipmentLED Vossloh
Life time50.000 h L80/B10
Warranty5 years
Type of InstallationEmpotrar
FormatRectangular
Outside measurement635 mm x 335 mm
Cutting measure595 mm x 295 mm
High/Depth70 mm
Luminous flux4.110 lm
Luminous efficiency171,25 lm/W
Optical SymmetryExtensiva
Optical distributionDirecta
Opening angle120 º
Grouping (MacAdam)3
Color temperature5.000 ºK
Chromatic reproduction index>90
Unified glare rating (UGR)19
Photobiological safetyGR 1
MovementFixed
Lighting consumption24 W
Voltage176 - 265 V
Frequency50 - 60 Hz
Power factor0,97
Insulation classClase 1
Degree of IP protectionIP65
Degree of IK protectionIK08
Operating temperature-10 → 45 ºC
CE markingSi
RoHS compliantSi
RecyclableSi
Selective collectionSi
Environmentally friendlySi
High energy efficiencySi
Easy installationSi

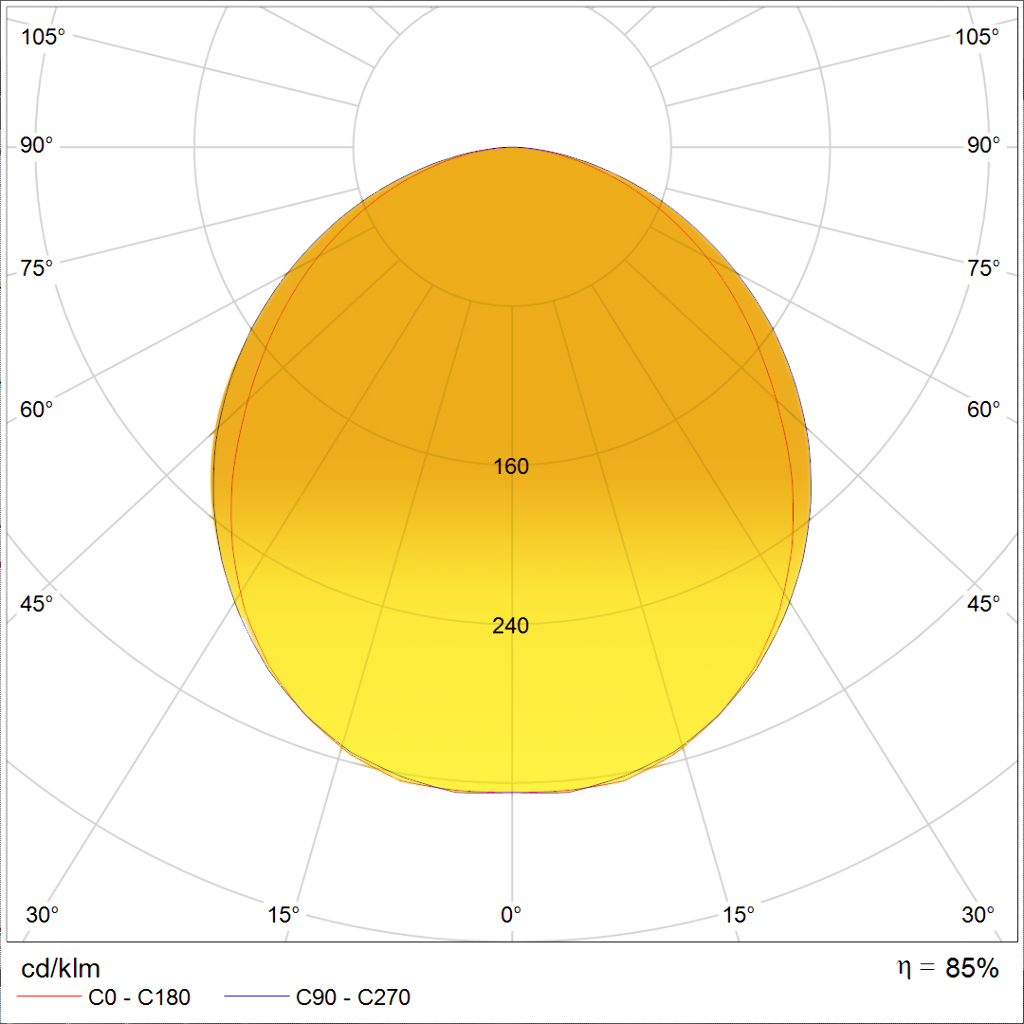

Curva fotométrica

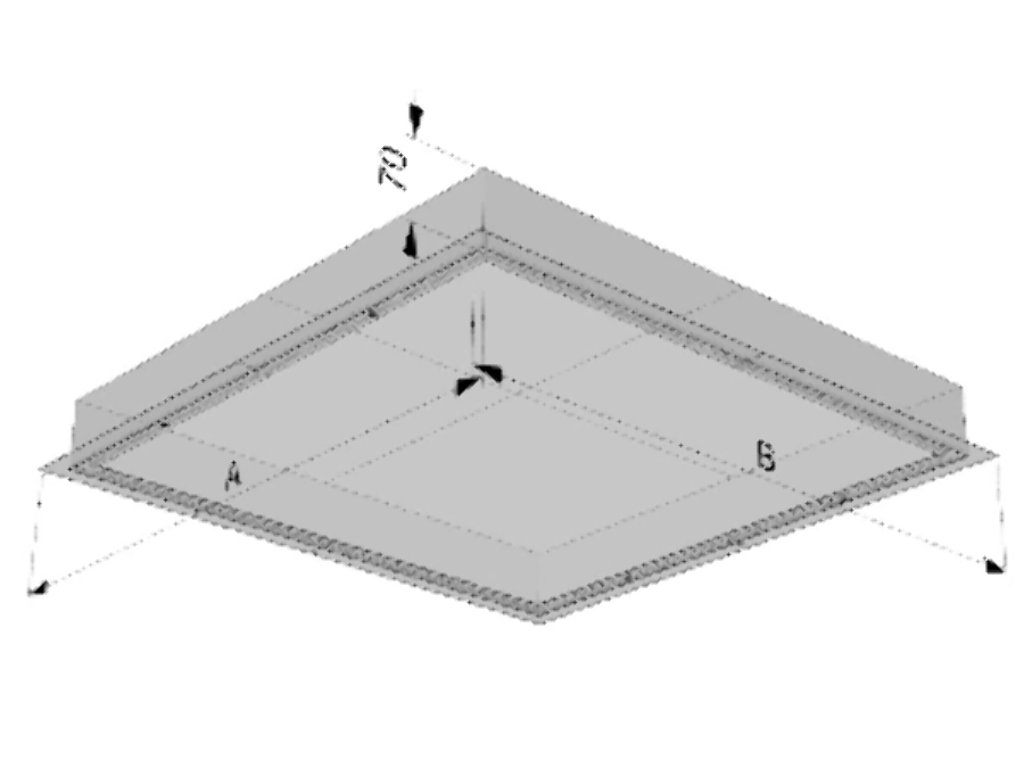

Gráfico

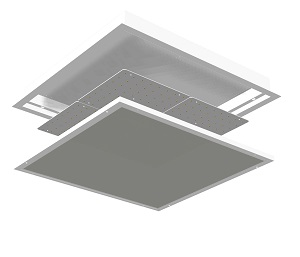

Detalle

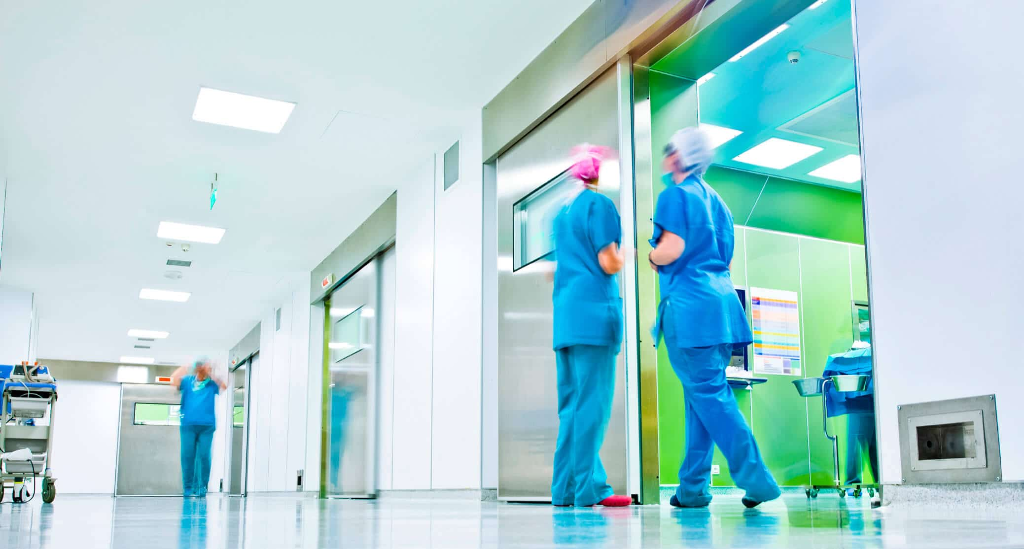

Foto ambiente
