⤓ CE Declaration of Conformity
| Catalog | Series | Reference | Color | |||||
|---|---|---|---|---|---|---|---|---|
| LED | GARDEN STREET | 73004840 | Gris/Ral 9007 | |||||

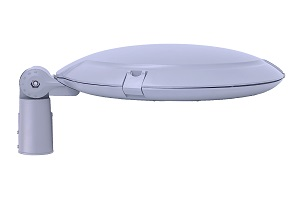

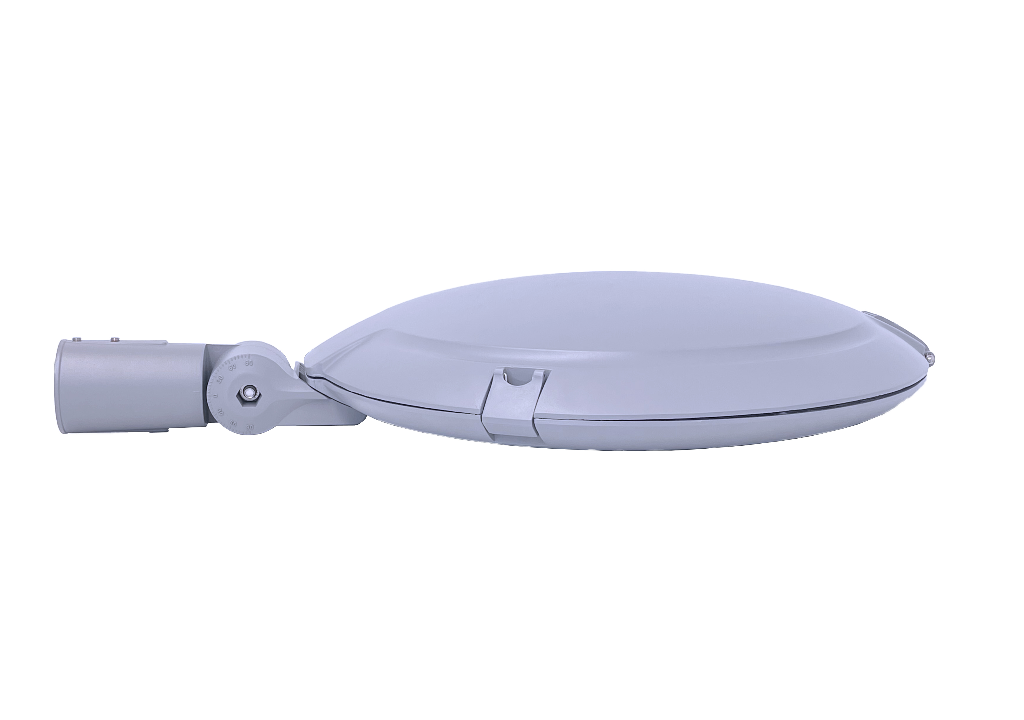

| Family of LED streetlamp luminaires for outdoor lighting. It consists of aluminum body and tempered glass, resistant to thermal shock and shock. Fixation system with screws. Instantaneous, clear and bright light quality means that up to 80% savings can be achieved compared to halide projectors. Thanks to their great performance are ideal for areas of all kinds such as gardens, parks, residential areas or streets etc. | ||||||||
| Material | Aluminio |
| Diffuser material | Vidrio Plano Templado |
| Frame material | Aluminio |
| Reflector material | Aluminio |
| Color lamp/application | Blanco neutro |
| Lighting technology | Led |
| Kind of product | Containing product |
| Contained light source | 3 x  |
| Number of lamps | 3 (included) |
| Type of lamp | Módulo LED |
| LED type | Módulo LED |
| Number of LEDs | 8 |
| Replaceable lamp | By user |
| Driver/equipment included | Si |
| Type driver/equipment | LED TCI |
| Life time | 100.000 h L70B10 |
| Warranty | 5 years |
| Type of Installation | En soporte |
| Format | Circular |

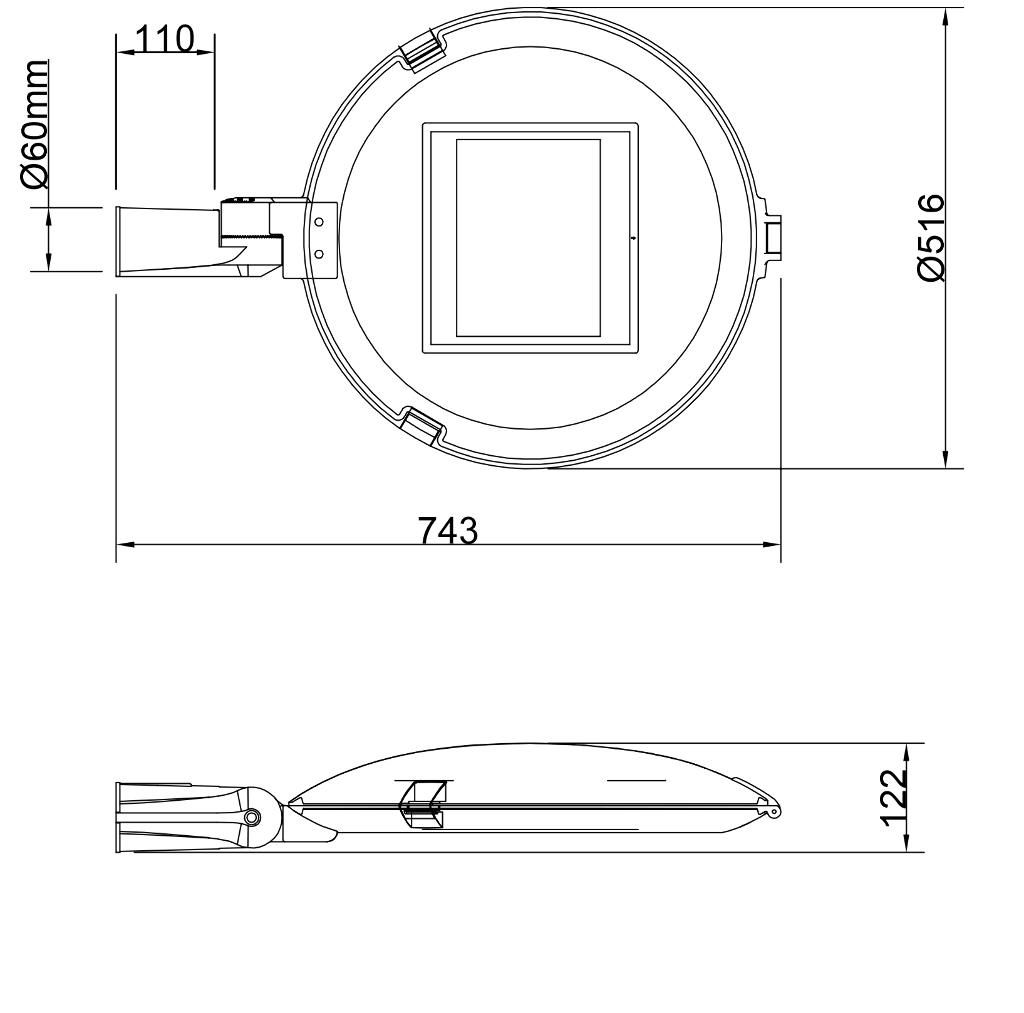

| External diameter | 516 mm |
| High/Depth | 234 mm |
| Type of connection to the support | Circular |
| Connection measurement | 60mm |
| Luminous flux | 6.480 lm |
| Luminous efficiency | 135,00 lm/W |

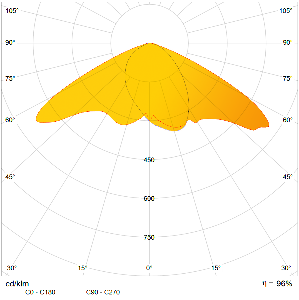

| Optical Symmetry | Vial |
| Optical distribution | Directa |
| Opening angle | 170 - 60 º |
| Grouping (MacAdam) | 3 |
| Color temperature | 4.000 ºK |
| Chromatic reproduction index | >80 |
| Unified glare rating (UGR) | 22 |
| Photobiological safety | GR 0 |
| Movement | Adjustable |
| Tilt angle | 45 º |
| Lighting consumption | 48 W |
| Voltage | 220 - 240 V |
| Frequency | 50 - 60 Hz |
| Power factor | 0,95 |
| Insulation class | Clase 2 |
| Degree of IP protection | IP66 |
| Degree of IK protection | IK9 |
| Operating temperature | -20 → 55 ºC |
| Mounting on flammable surface | No |
| CE marking | Si |
| RoHS compliant | Si |
| Recyclable | Si |
| Selective collection | Si |
| Environmentally friendly | Si |
| High energy efficiency | Si |
| Easy installation | Si |
