CLEAN
48 W
4.000 K
Neutral white
7.620 lm
Led 300 mA
IP65
UGR <19
60.000 h
Opening: 120 °
-20 a 45 °C
IK08
CRI >90
GR 1












Ref: 60241240
Downloads:

CLEAN 4x12W 4000K 300mA 635x635mm SV0 IP65

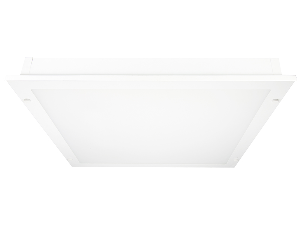

Family of recessed luminaires in sandwich panel, plasterboard or plaster ceilings.
The body and diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanes, hydrogen peroxide, bactilysine, surfalyse, etc...
Recordable from the bottom of the luminaire.
Designed to illuminate kitchens, clean rooms, laboratories, handling areas, etc...
The diffuser is mounted on a frame, it can be opal or transparent. It is fixed by four screws to the luminaire.
Light source: High luminance linear LED module and integrated driver.
SV0 optic: Frost White Special LED diffuser, guarantees great visual comfort and optimal light distribution.
Accessories: RA (Analogue Regulation 1-10V), RDali (Digital Regulation Dali). Light sensor, Emergency kit, etc...
Warranty: 5 years
PHYSICAL DATAColor | White |
Material | Sheet steel |
Diffuser material | Opal polycarbonate |
Frame material | Sheet steel |
Reflector material | Aluminium |
Driver/equipment included | Yes |
Type driver/equipment | LED Vossloh |
Movement | Fixed |
Degree of IP protection | IP65 |
Degree of IK protection | IK08 |
Operating temperature | -20 ~ 45 °C |
DIMENSIONAL DATAType of Installation | Embed |
Format | Rectangular |
Outside length | 635 mm |
Outside width | 635 mm |
Cutting length | 595 mm |
Cutting width | 595 mm |
High/Depth: | 70 mm |
OPERATING DATAColor temperature | 4.000 K |
Chromatic reproduction index | >90 |
MacAdam grouping | 3 |
Color lamp/application | Neutral white |
Luminous flux | 7.620 lm |
Luminous efficacy | 158,75 lm/W |
Optical distribution | Direct |
Optical Symmetry | Extensive |
Opening angle | 120 ° |
Unified glare rating | <19 |
Number of LEDs: | 72 |
LED type | Mód. lineal LED |
LED power intensity | 300 mA |
Number of lamps | 4 (included) |
Type of lamp | LED module |
Replaceable lamp | Not |
Life time | 60.000 h L90/B10 |
ELECTRICAL DATALighting technology | Led |
Consumed power | 48 W |
Power factor | 0,97 |
Voltage | 176 - 265 V |
Frequency | 50 - 60 Hz |
Insulation class | Class |
REGULATORY COMPLIANCECE marking | Yes |
BREEAM suitable | New construction |
RoHS compliant | Yes |
Recyclable | Yes |
Selective collection | Yes |
Environmentally friendly | Yes |
Photobiological safety | GR 1 |
High energy efficiency | Yes |
Easy installation | Yes |
Made in Spain | Yes |
