ASEPTIC TOP

96 W
4.000 K
Neutral white
15.240 lm
Led 300 mA
IP65
UGR <19
60.000 h
Opening: 120 °
-20 a 45 °C
IK08
CRI >90
GR 1

Ref: 62242440

Downloads:

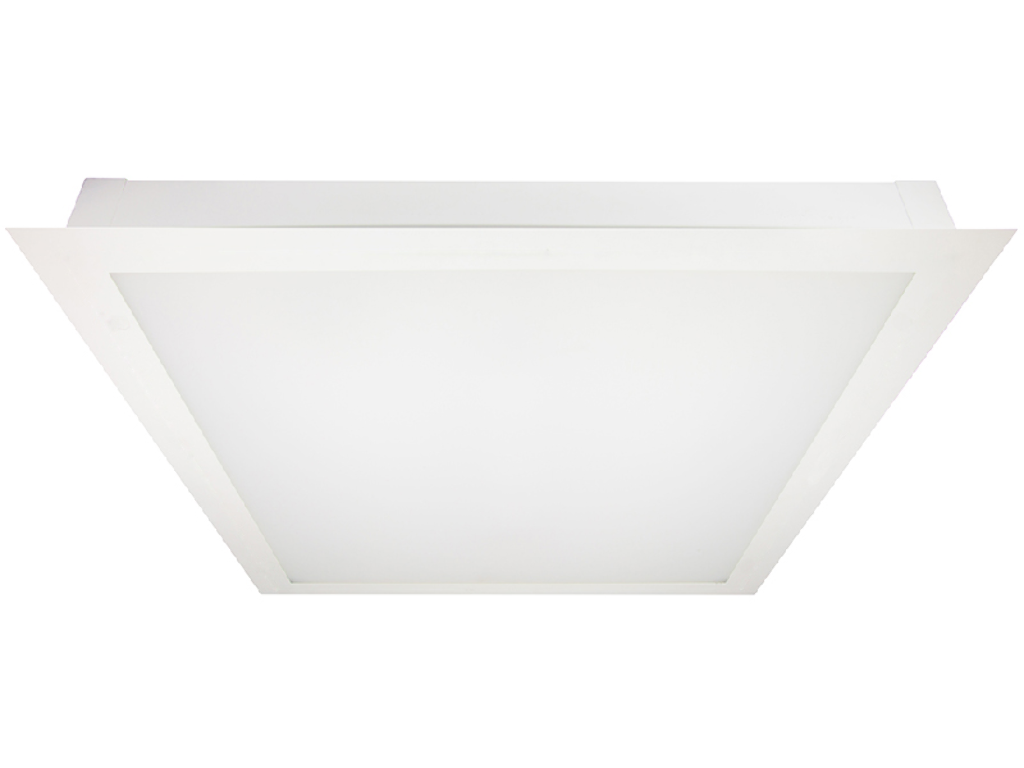

ASEPTIC TOP 4x24W 4000K 300mA 1235x635mm IP65

Family of recessed luminaires for sandwich panel ceilings. Recordable from the top, facilitating its maintenance without the need to stop the activities carried out in the room. The body and diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanes, hydrogen peroxide, bactilysine, surfalyse, etc... Specially designed to illuminate super aseptic spaces up to Class A, such as kitchens, clean rooms, laboratories, handling areas, etc. The diffuser is mounted on a frame, it can be opal or transparent. It is fixed by four screws to the luminaire. Light source: High luminance linear LED module and integrated driver. SV0 optic: Frost White Special LED diffuser, guarantees great visual comfort and optimal light distribution. Accessories: RA (Analogue Regulation 1-10V), RDali (Dali Digital Regulation), Light Sensor, Emergency Kit, Step On Flat, Do Not Step On Sticker, Quick Connector, etc...

Warranty: 5 years

PHYSICAL DATA

Color	White
Material	Steel Sheet
Diffuser material	Opal Polycarbonate
Frame material	Steel Sheet
Reflector material	Aluminium
Driver/equipment included	Yes
Type driver/equipment	LED Vossloh
Movement	Fixed
Degree of IP protection	IP65
Degree of IK protection	IK08
Operating temperature	-20 ~ 45 °C

DIMENSIONAL DATA

Type of Installation	Embed
Format	Rectangular
Outside length	1.235 mm
Outside width	635 mm
Cutting length	1.195 mm
Cutting width	595 mm
High/Depth:	70 mm

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Color lamp/application	Neutral white
Luminous flux	15.240 lm
Luminous efficacy	158,75 lm/W
Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Unified glare rating	<19
Number of LEDs:	72
LED type	Mód. lineal LED
LED power intensity	300 mA
Number of lamps	8 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	60.000 h L90/B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	96 W
Power factor	0,97
Voltage	176 - 265 V
Frequency	50 - 60 Hz
Insulation class	Class
