DETECTORES

Imagen del artículo 90100041
400 W
IP44
50.000 h
-20 a 40 °C
IK08
GR 1


Ref: 90100041

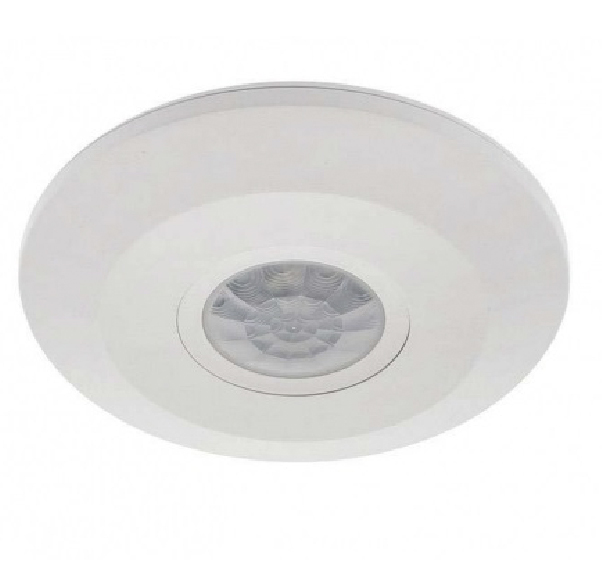

Detector de presencia PIR DL-006

Presence detectors for all our luminaires

Warranty: 3 years

PHYSICAL DATA
ColorBlanco
MaterialPolicarbonato
Diffuser materialPolicarbonato Prisma
Frame materialPolicarbonato
MovementFixed
Degree of IP protectionIP44
Degree of IK protectionIK08
Operating temperature-20 ~ 40 °C

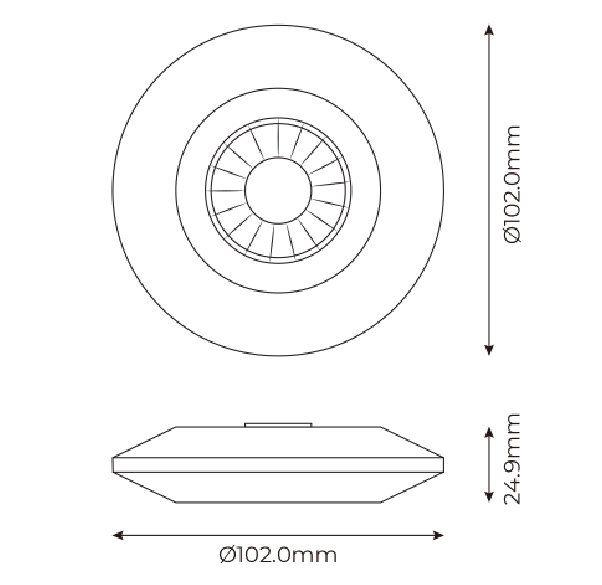

DIMENSIONAL DATA
Type of InstallationSurface
FormatCircular
Diameter102 mm
High/Depth: 25 mm
OPERATING DATA
Life time50.000 h L80B10
ELECTRICAL DATA
Consumed power400 W
Voltage220 - 240 V
Frequency50 - 60 Hz
Insulation classClass
REGULATORY COMPLIANCE
CE markingYes
RoHS compliantYes
RecyclableYes
Selective collectionYes
Environmentally friendlyYes
Photobiological safetyGR 1
Mounting on flammable surfaceNot
High energy efficiencyYes
Easy installationYes
Made in SpainNot
