SURF DISCO SENS

20 W
2.200 lm
IP44
UGR <20
50.000 h
Opening: 120 °
-10 a 50 °C
IK04
CRI >80
GR 0

Ref: 45102000

Downloads: ↓ Ficha de producto norma EU

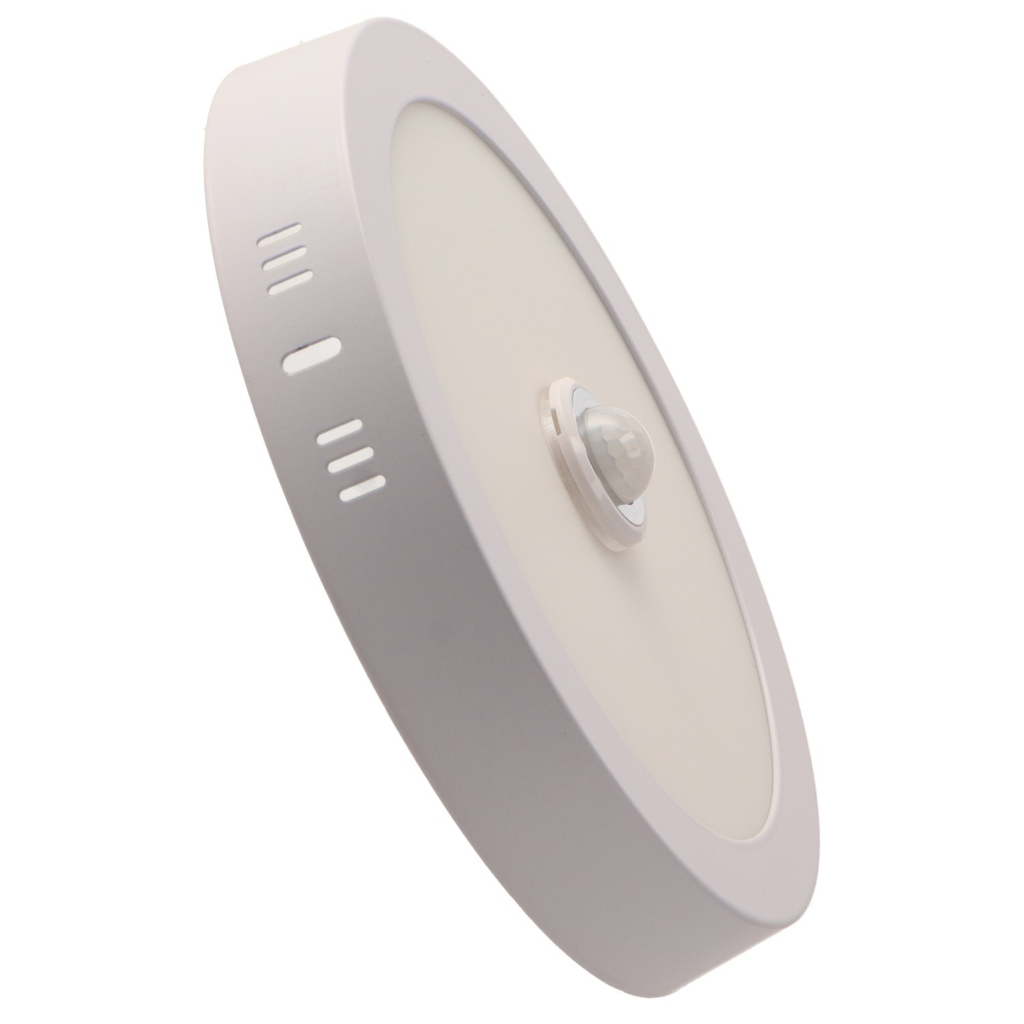

SURF DISCO SENS 20W CCT IP44 | Downlight Superficie Circular Blanco + Sensor Presencia

• Round LED surface-mounted downlight with a presence sensor. Its wide beam angle provides general lighting with maximum efficiency. • Light source: SMD LED module and external driver. • Opal diffuser allows light to spread perfectly without creating harsh shadows. • Specially designed to replace conventional fluorescent downlights. • Quick and easy installation using spring-loaded mounting brackets. • Recommended for installation in commercial areas, offices, schools, and home lighting (kitchens, hallways, bathrooms, living rooms, etc.)

Warranty: 3 years

PHYSICAL DATA

Color	Blanco
Frame material	Zamak
Driver/equipment included	Yes
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP44
Degree of IK protection	IK04
Operating temperature	-10 ~ 50 °C

DIMENSIONAL DATA

Type of Installation	Surface
Format	Circular
Diameter	225 mm
High/Depth:	13 mm

OPERATING DATA

Chromatic reproduction index	>80
MacAdam grouping	3
Luminous flux	2.200 lm
Luminous efficacy	110 lm/W

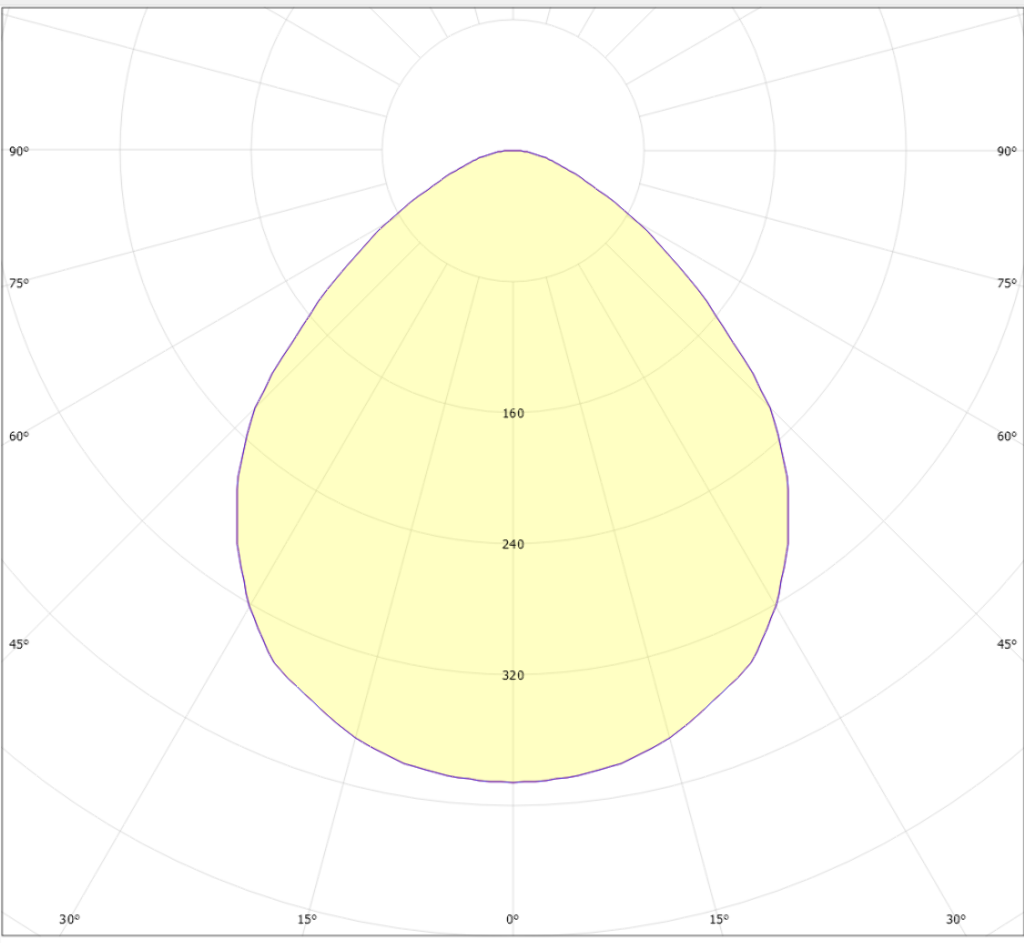

Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Unified glare rating	<20
LED type	SMD LED
Number of lamps	1 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	50.000 h L80B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	20 W
Power factor	0,90
Voltage	85 - 265 V
Frequency	50 - 60 Hz
Insulation class	Class
