ASEPTIC INACTÍNICA

18/9 W
4.000 K
2.615 lm
Led 350 mA
IP65
UGR <19
60.000 h
Opening: 120 °
-10 a 45 °C
IK08
CRI >90
GR 1

Ref: 63220940

Downloads:

ASEPTIC INACT 2x9+1X9 ROJO 4000K 335x335mm IP65

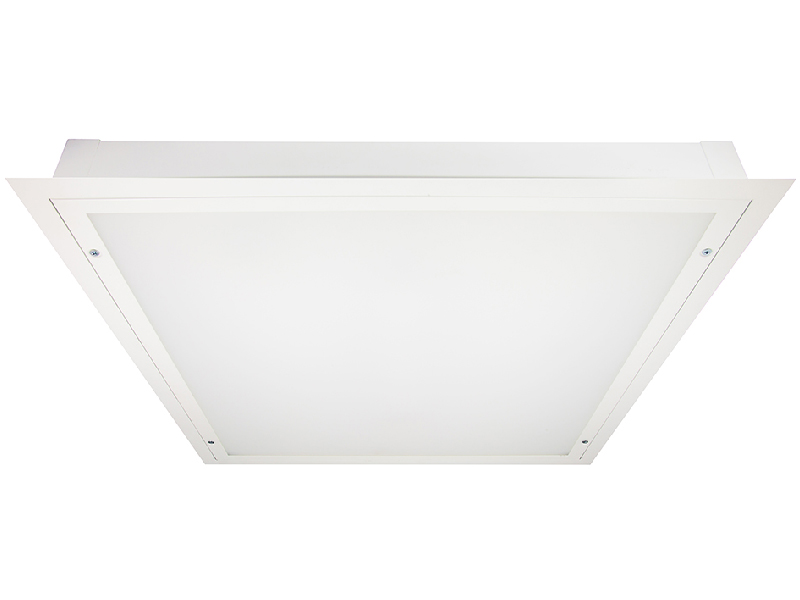

Family of recessed luminaires for sandwich panel ceilings. Recordable from the bottom. The body and diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanes, hydrogen peroxide, bactilysine, surfalyse, etc... Specially designed to illuminate super aseptic spaces up to Class A, such as kitchens, clean rooms, laboratories, handling areas, etc. The diffuser is mounted on a frame, it can be opal or transparent. It is fixed by four screws to the luminaire. Light source: High luminance linear LED module and integrated driver. SV0 optic: Frost White Special LED diffuser, guarantees great visual comfort and optimal light distribution. Accessories: RA (Analogue Regulation 1-10V), RDali (Digital Regulation Dali). Light sensor, Emergency kit. INACTIVE MODEL YELLOW LIGHT

Warranty: 5 years

PHYSICAL DATA

Color	Blanco
Material	Chapa Acero
Diffuser material	Policarbonato Opal
Frame material	Chapa Acero
Reflector material	Aluminio
Driver/equipment included	Yes
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP65
Degree of IK protection	IK08
Operating temperature	-10 ~ 45 °C

DIMENSIONAL DATA

Type of Installation	Embed
Format	Square
Outside measurement	335 mm
Cutting measure	295 mm
High/Depth:	70 mm

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Luminous flux	2.615 lm
Luminous efficacy	145,28 lm/W
Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Unified glare rating	<19
Number of LEDs:	72
LED type	Mód. lineal LED
LED power intensity	350 mA
Number of lamps	3 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	60.000 h L90/B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	18 / 9 W
Power factor	0,97
Voltage	176 - 265 V
Frequency	50 - 60 Hz
Insulation class	Class
