DIDAC

32 W
4.000 K
Neutral white
5.630 lm
Led 500 mA
IP67
UGR <20
100.000 h
Opening: 60x150 °
-20 a 45 °C
IK08
CRI >90
GR 1

Ref: 77203240

Downloads:

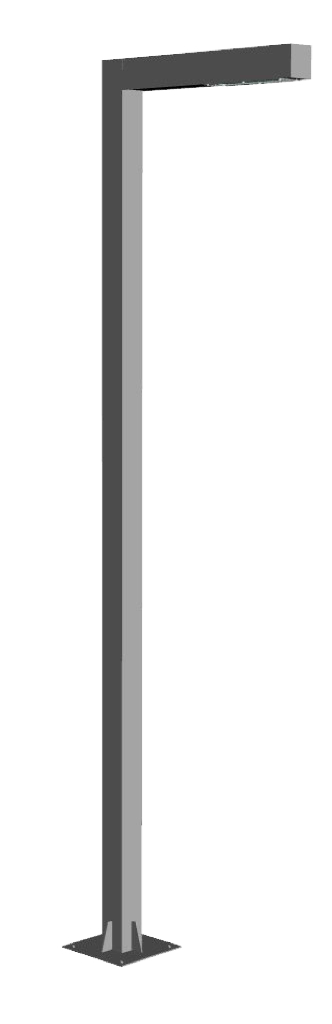

DIDAC 32W 4000K 500mA 3000mm Urban Gray IP65

Family of outdoor luminaires for decorative and urban lighting applications. Body made of premium quality aluminium, passive dissipation through the body for proper thermal management. Light source: High luminance 3R SMD LED linear module and integrated driver. Includes access window to fuse holder located 550mm from the base of the staff. opticians Medium asymmetric street optic. Different types of opening are available, between 60º and 150º for a perfect adaptation to different spaces. Accessories: RA (Analogue Regulation 1-10V), RDali (Dali Digital Regulation), Emergency Kit, etc...

Warranty: 5 years - 5 Years

PHYSICAL DATA

Color	Urban Gray
Material	Aluminium
Diffuser material	Transparent Polycarbonate
Frame material	Aluminium
Reflector material	Aluminium
Driver/equipment included	Yes
Type driver/equipment	Driver IP65
Movement	Fixed
Degree of IP protection	IP67
Degree of IK protection	IK08
Operating temperature	-20 ~ 45 °C

DIMENSIONAL DATA

Type of Installation	Surface
Format	Rectangular
Measure	100 mm
Width	100 mm
High/Depth:	3.000 mm
Head measurement	750 mm
Type of connection to the support	Cuadrada
Connection measurement	300

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Color lamp/application	Neutral white
Luminous flux	5.630 lm
Luminous efficacy	175,94 lm/W
Optical distribution	Vial
Optical Symmetry	Asymmetrical
Opening angle	60,00 ° x 150 °
Unified glare rating	<20
Number of LEDs:	66
LED type	Módulo Lineal LED
LED power intensity	500 mA
Number of lamps	2 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	100.000 h L80/B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	32 W
Power factor	0,97
Voltage	220 - 240 V
Frequency	50 - 60 Hz
Insulation class	Class
Overload protection	6kV
