SCR-T LED+ST6

51 W
6.000 K
7.845 lm
Led 350 mA
IP20
UGR <19
50.000 h
Opening: 120 °
-10 a 50 °C
IK04
CRI >90
GR 0

Ref: 11131760

Downloads:

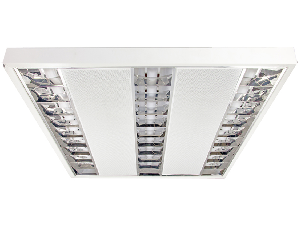

Surface luminaire SCR-T LED 3x17W 6000K + ST6

• Family of surface-mounted luminaires with straight edges, attached to the ceiling using four holes. • Light Source: High-luminance LED linear module and driver. • ST6 Optic: Three-dimensional anodized aluminum diffuser for optimal visual comfort, semi-transparent diffuser, specifically for LEDs, inserted into the louver to optimize diffusion and homogeneous light control. • Accessories: RA (1-10V Analog Dimming), RDali (Dali Digital Dimming), Brightness Sensor, Emergency Kit, etc.

Warranty: 5 years

PHYSICAL DATA

Color	White
Material	Sheet steel
Diffuser material	Bright aluminuim
Frame material	Sheet steel
Reflector material	Sheet steel
Driver/equipment included	Yes
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP20
Degree of IK protection	IK04
Operating temperature	-10 ~ 50 °C

DIMENSIONAL DATA

Type of Installation	Surface
Format	Square
Measure	597 mm
High/Depth:	55 mm

OPERATING DATA

Color temperature	6.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Luminous flux	7.845 lm
Luminous efficacy	153,82 lm/W
Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Unified glare rating	<19
Number of LEDs:	24
LED type	SMD LED
LED power intensity	350 mA
Number of lamps	3 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	50.000 h L90B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	51 W
Power factor	0,97
Voltage	176 - 265 V
Frequency	50 - 60 Hz
Insulation class	Class
