TEY

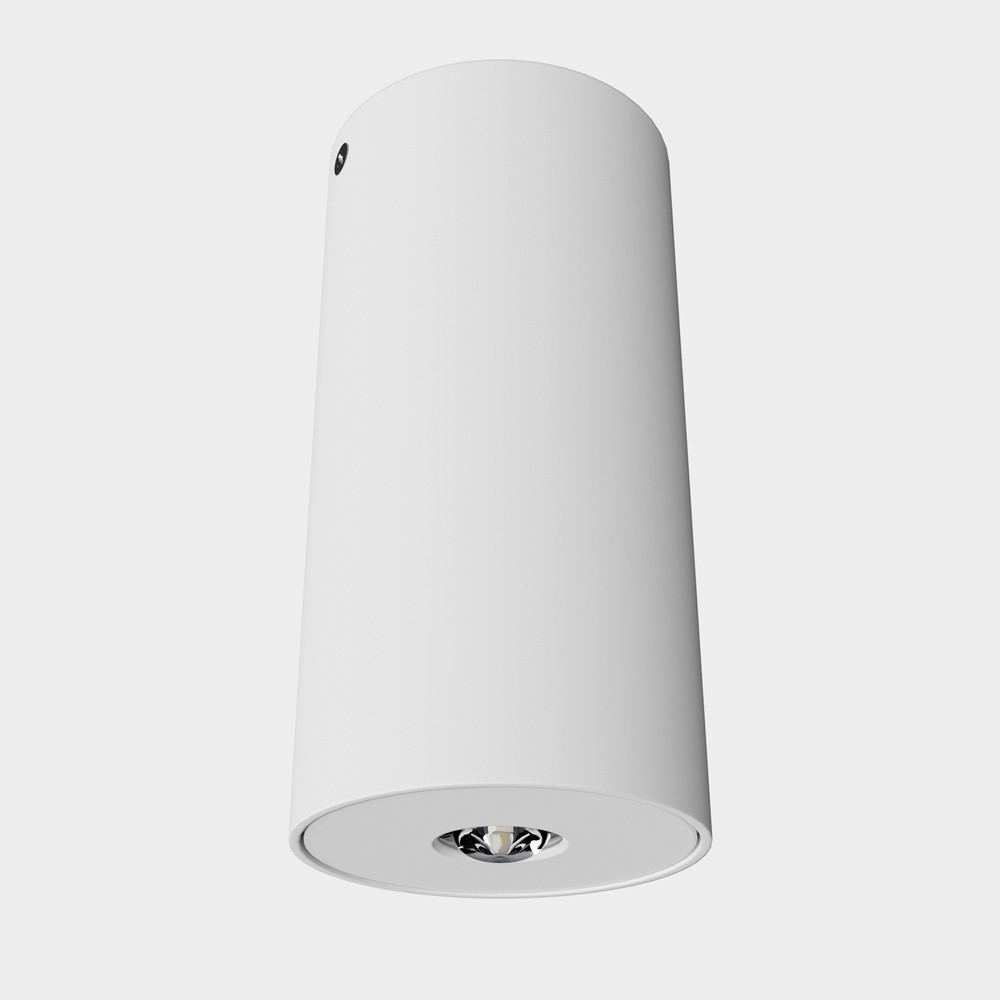

Imagen del artículo 81334000
Novedad
6.000 K
Cold white
Emergency: 340 lm
IP20
60.000 h
0 a 40 °C
IK08
GR 0
→ 21 m


Ref: 81334000
Downloads:

Spot sup. Emergencia Autotest TEY 340Lm IP20

Warranty: 3 years

PHYSICAL DATA
ColorBlanco
MaterialChapa de Acero
Diffuser materialCristal
Frame materialChapa de Acero
Reflector materialAluminio
Driver/equipment includedYes
MovementFixed
Degree of IP protectionIP20
Degree of IK protectionIK08
Operating temperature0 ~ 40 °C
DIMENSIONAL DATA
Type of InstallationSurface
FormatCircular
Diameter80 mm
High/Depth: 161 mm
OPERATING DATA
Color temperature6.000 K
Color lamp/applicationCold white
Emergency light flow340 lm
Number of LEDs: 1
LED typeMódulo LED
Emergency lampMódulo SMD LED
Number of lamps1 (included)
Type of lampLED module
Replaceable lampNot
Life time60.000 h L70B10
Autonomy1 h
Emergency operationNot permanent
BatteryYes
Battery technologyNi-Cd
Battery characteristicsNi-Cd 3,6V batteries
Recharge time24 h
AutotestAutonomous
Viewing distance21 m
ELECTRICAL DATA
Lighting technologyLed
Non-permanent mode consumption3 W
Voltage220 - 240 V
Frequency50 - 60 Hz
Insulation classClass
REGULATORY COMPLIANCE
CE markingYes
RoHS compliantYes
RecyclableYes
Selective collectionYes
Environmentally friendlyYes
Photobiological safetyGR 0
High energy efficiencyYes
Easy installationYes
Made in SpainNot
