ROMER

10 W
CCT SWITCH
1.000 lm
Led 250 mA
IP44
UGR <19
30.000 h
Opening: 36 °
-10 a 50 °C
IK04
CRI >80
GR 0

Ref: 46801000

Downloads: ↓ Ficha de producto norma EU

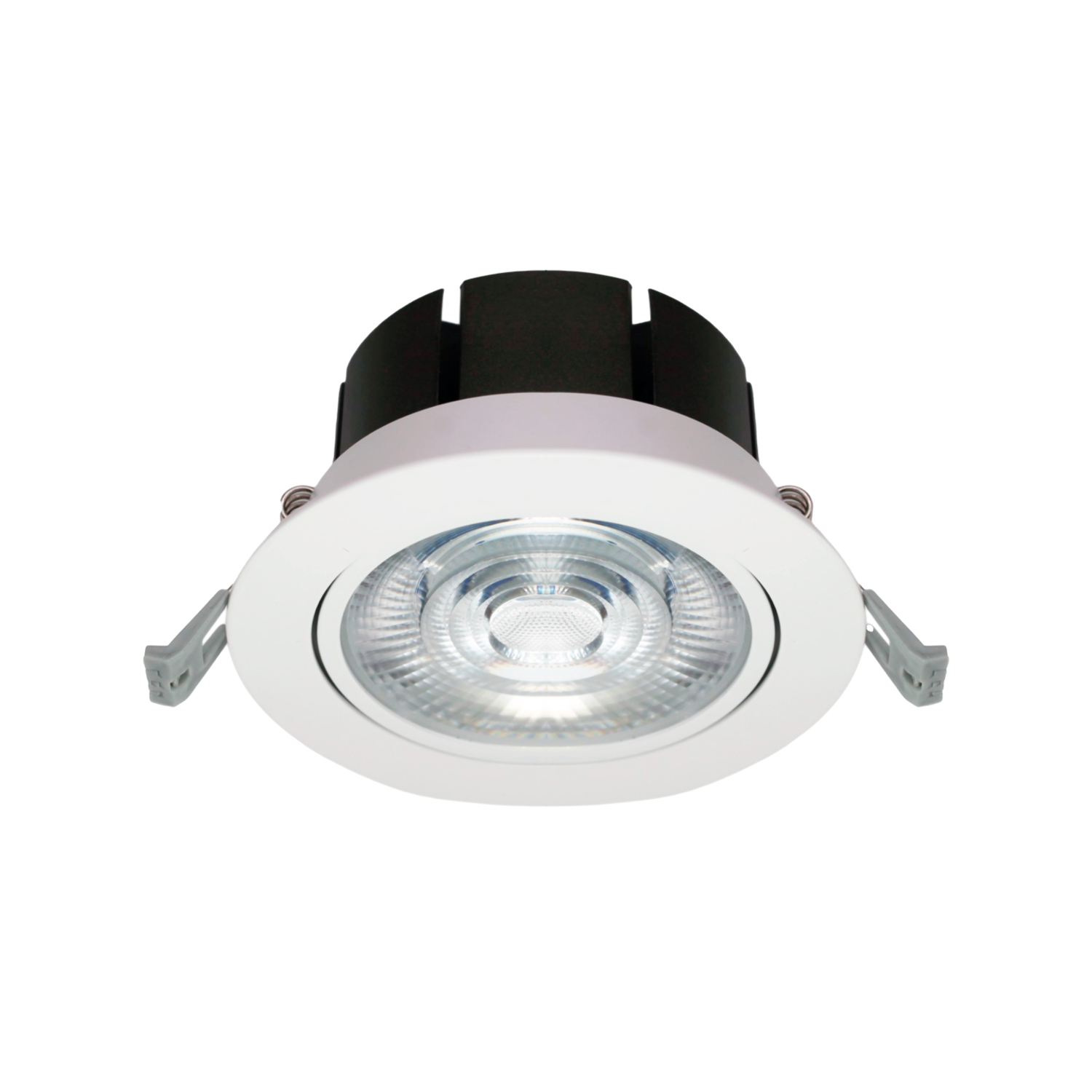

ROMER 10W CCT IP44 | Spot Empotrar Circular Blanco

• Round, directional LED spotlight made of aluminum with an elegant white finish. • Excellent option for efficient and versatile lighting of your interior spaces. • Quick and easy ceiling mounting using springs, specially designed for installation in interior spaces such as hallways, living rooms, kitchens, etc.

Warranty: 3 years

PHYSICAL DATA

Color	Blanco
	Aluminio
Driver/equipment included	Yes
Type driver/equipment	LIFUD
Movement	Adjustable
Tilt angle	10 º
Degree of IP protection	IP44
Degree of IK protection	IK04
Operating temperature	-10 ~ 50 °C

DIMENSIONAL DATA

Type of Installation	Embed
Format	Circular
External diameter	85 mm
Cutting diameter	75 mm
High/Depth:	50 mm

OPERATING DATA

Chromatic reproduction index	>80
MacAdam grouping	3
Color lamp/application	CCT SWITCH
Luminous flux	1.000 lm
Luminous efficacy	100 lm/W
Optical distribution	Intensive
Optical Symmetry	Spot
Opening angle	36 °
Unified glare rating	<19
LED type	Chip COB Bridgelux
LED power intensity	250 mA
Number of lamps	1 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	30.000 h L80B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	10 W
Power factor	0,80
Voltage	220 - 240 V
Frequency	50 - 60 Hz
Insulation class	Class
