MAGNETS

40 W
4.000 K
Neutral white
4.000 lm
IP65
UGR <19
50.000 h
Opening: 120 °
0 a 40 °C
IK07
CRI >90
GR 1

Ref: 61713540K

Downloads: ↓ Ficha de producto norma EU

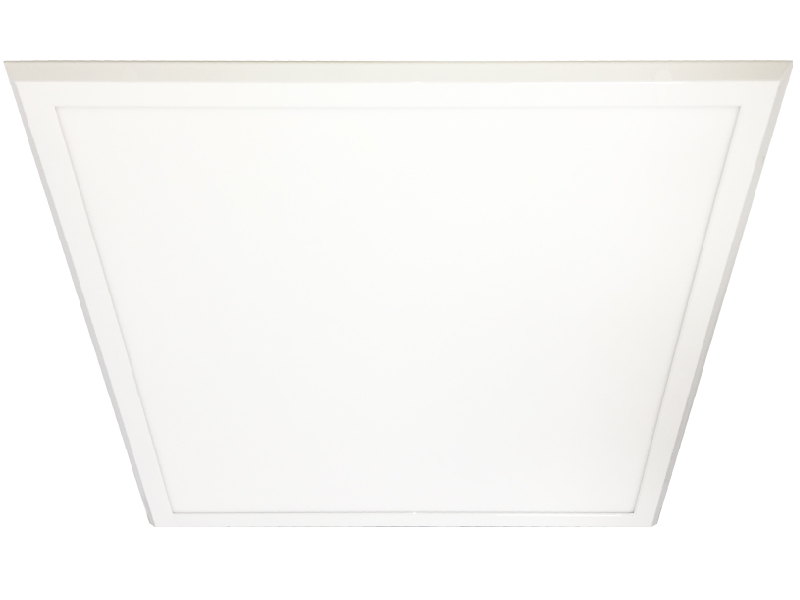

Panel est. MAGNETS 40W 4000K 625x625mm + Kit de Emergencia

• Family of watertight LED surface panels of national manufacture. • Frame made of high-quality extruded aluminum and diffuser made of unbreakable polycarbonate. • The body and the diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanios, hydrogen peroxide, bactilysine, surfalyse, etc ... • Light source. High luminance SMD LED module and external driver. • Fixing to the ceiling by means of neodymium magnets. • Specially designed for installation in laboratories, clean rooms, aseptic spaces, etc...

Warranty: 3 years

PHYSICAL DATA

Color	Blanco
Material	Aluminio
Diffuser material	Policarbonato
Frame material	Aluminio
Reflector material	Aluminio
Driver/equipment included	Yes
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP65
Degree of IK protection	IK07
Operating temperature	0 ~ 40 °C

DIMENSIONAL DATA

Type of Installation	Surface
Format	Rectangular
Measure	625 mm
Width	625 mm
High/Depth:	13 mm
Weight	3,60 Kg

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Color lamp/application	Neutral white
Luminous flux	4.000 lm
Luminous efficacy	100 lm/W
Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Unified glare rating	<19
Number of LEDs:	156
LED type	LED SMD2835
Number of lamps	1 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	50.000 h L80/B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	40 W
Power factor	0,95
Voltage	200 - 240 V
Frequency	50 - 60 Hz
Insulation class	Class
