CLEAN

68 W
4.000 K
Neutral white
10.460 lm
Led 350 mA
IP65
UGR <19
60.000 h
Opening: 120 °
-20 a 45 °C
IK08
CRI >90
GR 1

Ref: 60223440

Downloads:

CLEAN 2x34W 4000K 350mA 1235x335mm SV0 IP65

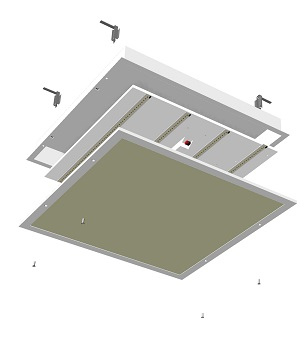

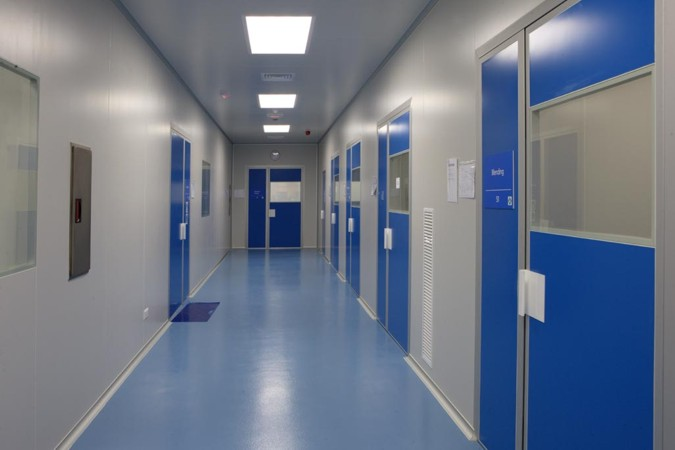

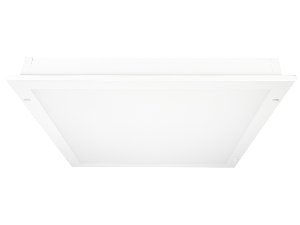

Family of recessed luminaires in sandwich panel, plasterboard or plaster ceilings. The body and diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanes, hydrogen peroxide, bactilysine, surfalyse, etc... Recordable from the bottom of the luminaire. Designed to illuminate kitchens, clean rooms, laboratories, handling areas, etc... The diffuser is mounted on a frame, it can be opal or transparent. It is fixed by four screws to the luminaire. Light source: High luminance linear LED module and integrated driver. SV0 optic: Frost White Special LED diffuser, guarantees great visual comfort and optimal light distribution. Accessories: RA (Analogue Regulation 1-10V), RDali (Digital Regulation Dali). Light sensor, Emergency kit, etc...

Warranty: 5 years

PHYSICAL DATA

Color	White
Material	Sheet steel
Diffuser material	Opal polycarbonate
Frame material	Sheet steel
Reflector material	Aluminium
Driver/equipment included	Yes
Type driver/equipment	LED Vossloh
Movement	Fixed
Degree of IP protection	IP65
Degree of IK protection	IK08
Operating temperature	-20 ~ 45 °C

DIMENSIONAL DATA

Type of Installation	Embed
Format	Rectangular
Outside length	1.235 mm
Outside width	335 mm
Cutting length	1.195 mm
Cutting width	295 mm
High/Depth:	70 mm

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Color lamp/application	Neutral white
Luminous flux	10.460 lm
Luminous efficacy	153,82 lm/W

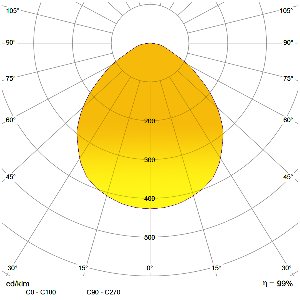

Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Unified glare rating	<19
Number of LEDs:	72
LED type	Mód. lineal LED
LED power intensity	350 mA
Number of lamps	4 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	60.000 h L90/B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	68 W
Power factor	0,97
Voltage	176 - 265 V
Frequency	50 - 60 Hz
Insulation class	Class
