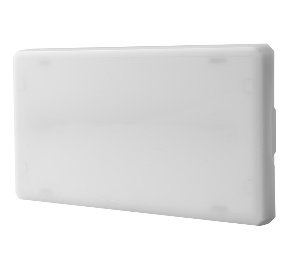

León S

1 W
6.000 K
Cold white
Emergency: 100 lm
IP42
40.000 h
Opening: 120 °
0 a 40 °C
IK06
GR 0

Ref: 80110000

Downloads:

Surf. Autotest evac. lum. LEÓN S 100Lm IP42 + Opa

· Body made of white polycarbonate and diffuser made of transparent or opal polycarbonate. · Family of evacuation luminaires for surface mounting. · LED diode that signals the presence of voltage and accumulator recharge, protection against deep discharge. · Available on demand 3h version of autonomy and permanent version.

Warranty: 2 years

PHYSICAL DATA

Color	White
Material	Polycarbonate
Diffuser material	Opal polycarbonate
Frame material	Polycarbonate
Driver/equipment included	Yes
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP42
Degree of IK protection	IK06
Operating temperature	0 ~ 40 °C

DIMENSIONAL DATA

Type of Installation	Surface
Format	Rectangular
Measure	261 mm
Width	124 mm
High/Depth:	56 mm

OPERATING DATA

Color temperature	6.000 K
MacAdam grouping	3
Color lamp/application	Cold white
Emergency light flow	100 lm
Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Number of LEDs:	8
LED type	Mód.lineal LED
Emergency lamp	100
Number of lamps	1 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	40.000 h L70B10
Autonomy	1 h
Emergency operation	Not permanent
Battery	Yes
Battery technology	Ni-Cd
Battery characteristics	Níquel Cadmio
Recharge time	24 h
Autotest	Autonomous

ELECTRICAL DATA

Lighting technology	Led
Consumed power	1 W
Voltage	220 - 230 V
Frequency	50 - 60 Hz
Insulation class	Class
Overload protection	Yes
Temperature protection	Yes
