LINE

17 W
4.000 K
Neutral white
2.680 lm
Led 350 mA
IP40
UGR <19
60.000 h
Opening: 120 °
-10 a 45 °C
IK04
CRI >90
GR 1

Ref: 20511740

Downloads:

Surf. Lum. LINE 17W 4000K 350mA 570mm SV0

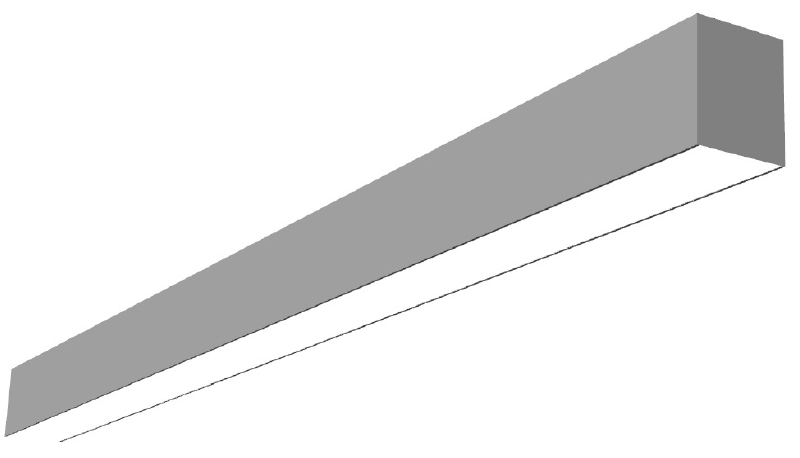

· Family of suspended LED luminaires with a minimalist design and small dimensions. · Made of extruded aluminum, it confers a large mechanical load capacity, allows lengths of up to 3 meters. It can be cut to different sizes. · Lacquered in white (RAL 9010) or gray (RAL 9006). · Light Source. High luminance LED linear module and multipotence driver. · Optics SV0: Frost White Special LED diffuser, guarantees a great visual comfort and an optimal light distribution.

Warranty: 5 years

PHYSICAL DATA

Color	Gray / White
Material	Aluminium
Diffuser material	Opal polycarbonate
Frame material	Aluminium
Reflector material	Aluminium
Driver/equipment included	Yes
Type driver/equipment	LED Vossloh
Movement	Fixed
Degree of IP protection	IP40
Degree of IK protection	IK04
Operating temperature	-10 ~ 45 °C

DIMENSIONAL DATA

Type of Installation	Suspended
Format	Rectangular
Measure	570 mm
Width	30 mm
High/Depth:	36 mm

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Color lamp/application	Neutral white
Luminous flux	2.680 lm
Luminous efficacy	157,65 lm/W
Optical distribution	Direct
Optical Symmetry	Symmetric
Opening angle	120 °
Unified glare rating	<19
Number of LEDs:	72
LED type	Módulo Lineal LED
LED power intensity	350 mA
Number of lamps	1 (included)
Type of lamp	LED module
Replaceable lamp	By user
Life time	60.000 h L90B10

ELECTRICAL DATA

Lighting technology	Led
Maximum power	17 W
Power factor	0,97
Voltage	176 - 265 V
Frequency	50 - 60 Hz
Insulation class	Class
