PARÍS

10 W
4.000 K
Neutral white
1.100 lm
IP65
UGR <20
30.000 h
Opening: 360 °
-20 a 50 °C
IK08
CRI >80
GR 0

Ref: 72011041

Downloads:

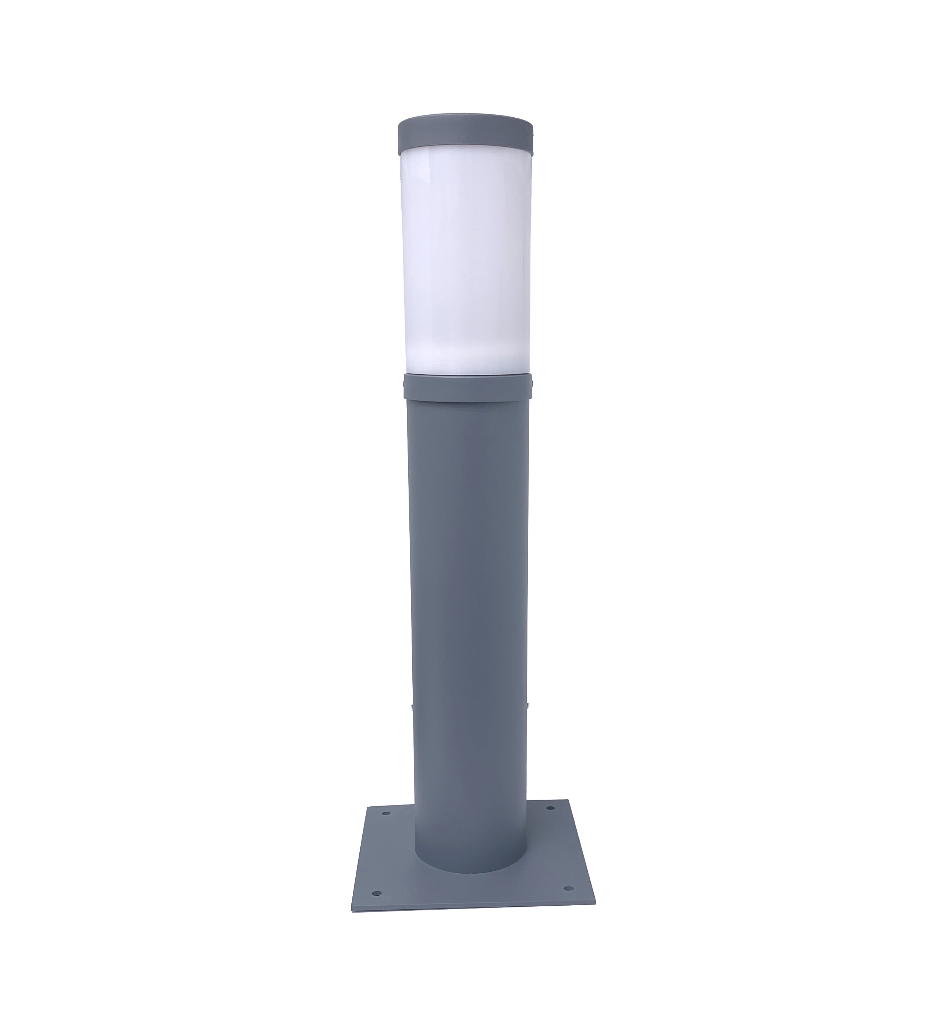

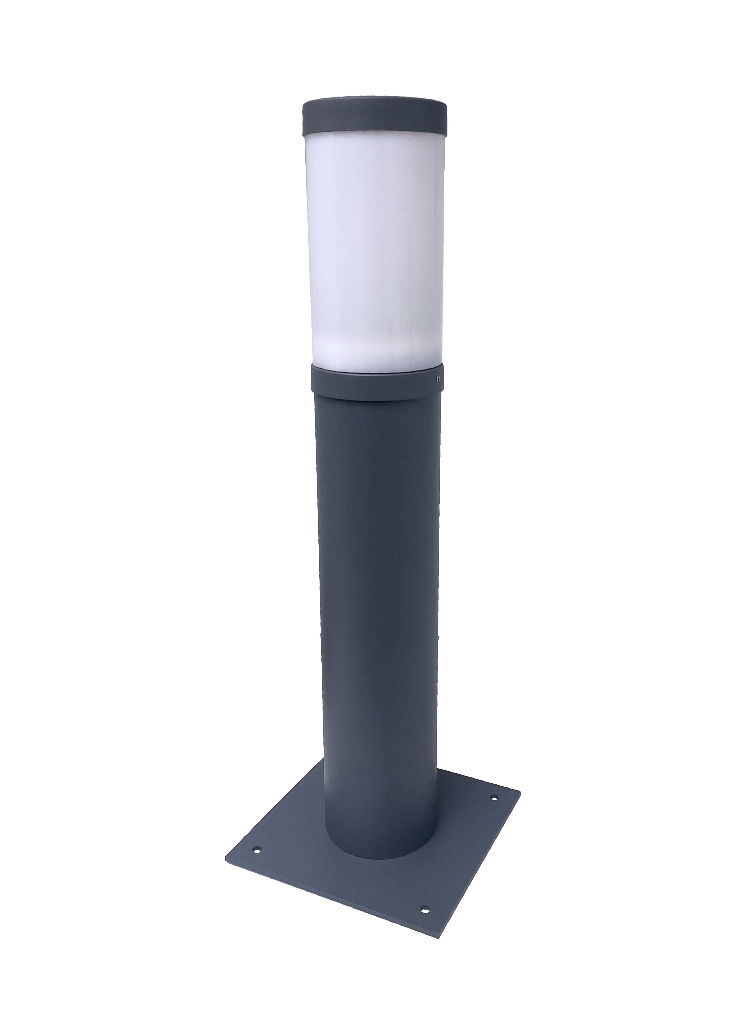

Baliza PARÍS 10W 4000K 600mm GRIS URBANO IP65

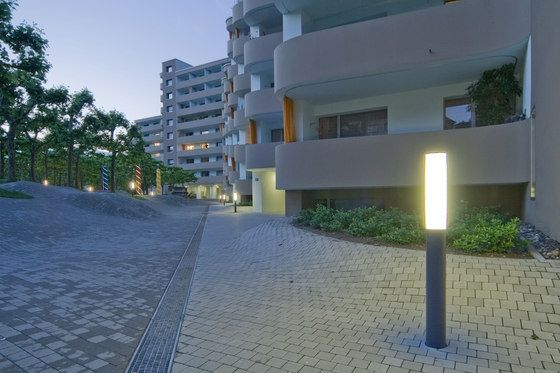

Family of round beacons for outdoor lighting, made of aluminum alloy and polycarbonate reflector. Electrostatic painted (any RAL color) and hardened thermostatic, glass sealed with rubber gasket to confer a degree of IP65 protection. Specially designed for outdoor installation, such as gardens, parks, etc. Its wide opening angle provides general illumination with maximum efficiency. Lamp accessible from the outside by removing the top cover of the beacon, facilitating installation and maintenance work.

Warranty: 5 years

PHYSICAL DATA

Color	Gris Urbano
Material	Aluminio
Diffuser material	Policarbonato Opal
Frame material	Aluminio
Type driver/equipment	Driver IP65
Movement	Fixed
Degree of IP protection	IP65
Degree of IK protection	IK08
Operating temperature	-20 ~ 50 °C

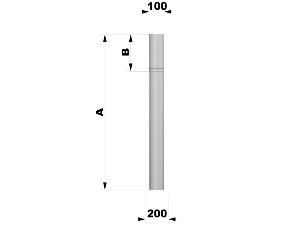

DIMENSIONAL DATA

Type of Installation	Surface
Format	Circular
Diameter	100 mm
High/Depth:	600 mm
Head measurement	160 mm
Type of connection to the support	Cuadrada
Connection measurement	200

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>80
MacAdam grouping	3
Color lamp/application	Neutral white
Luminous flux	1.100 lm
Luminous efficacy	110 lm/W

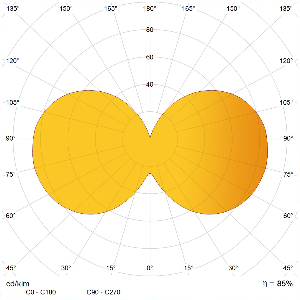

Optical distribution	Medium
Optical Symmetry	Circular
Opening angle	360 °
Unified glare rating	<20
Number of LEDs:	25
LED type	Lámpara LED
Number of lamps	1 (included)
Type of lamp	Spherical
Lampholder	E27
Replaceable lamp	By user
Life time	30.000 h L70/B10

ELECTRICAL DATA

Lighting technology	Led
Maximum power	10 W
Power factor	0,90
Voltage	220 - 240 V
Frequency	50 - 60 Hz
Insulation class	Class
