BOX

50 W
4.000 K
Neutral white
6.500 lm
IP65
UGR <20
50.000 h
Opening: 120 °
-25 a 35 °C
IK08
CRI >90
GR 1

Ref: 31415040

Downloads:

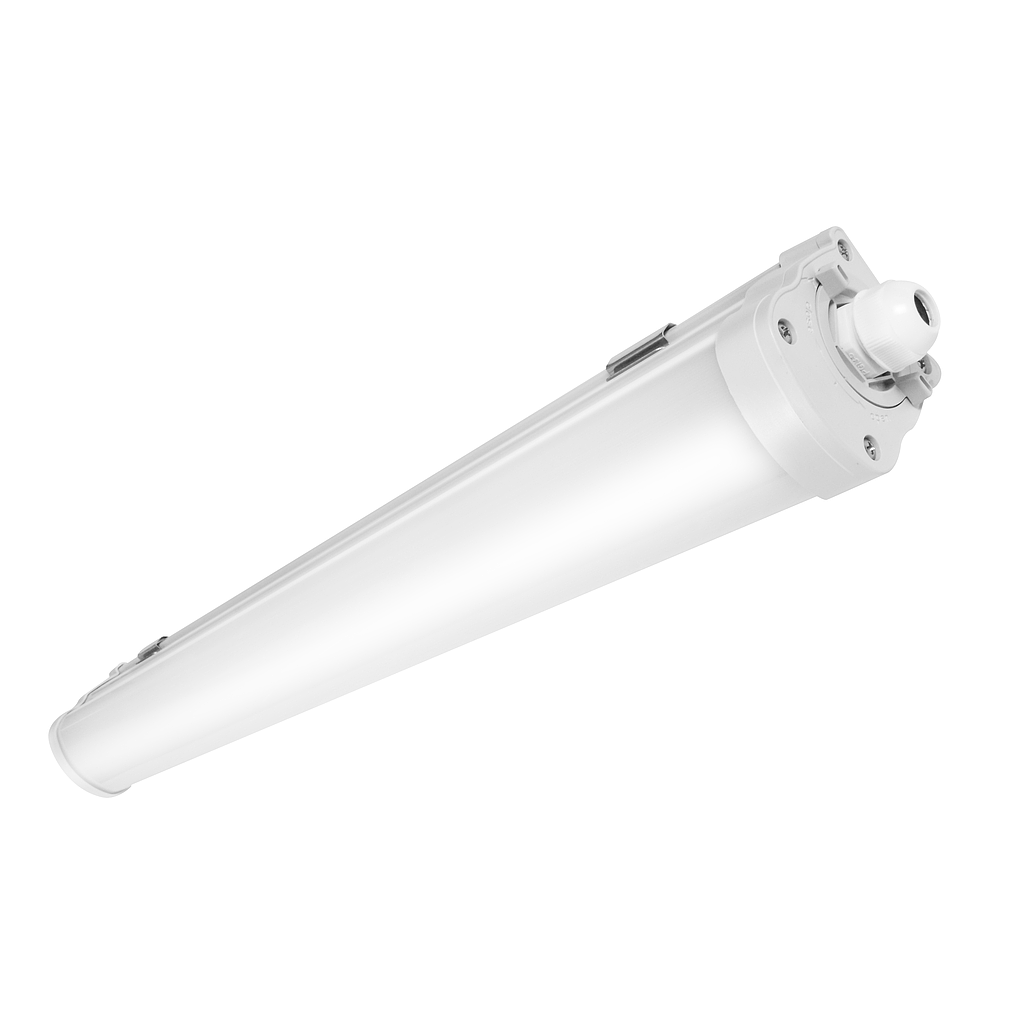

Estanca LED Integrado BOX 50W 4000K 1456mm IP65

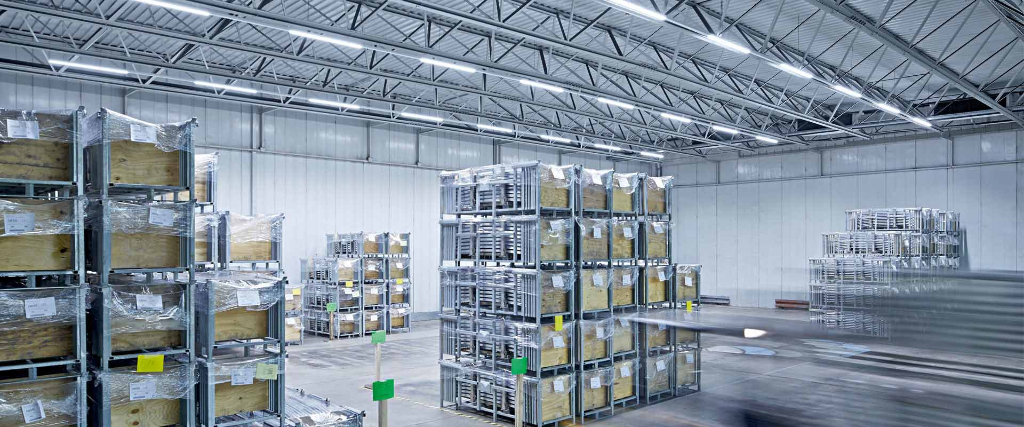

Family of waterproof luminaires with greater impact resistance for multiple industrial lighting applications with low mounting height, where high protection against humidity and dust is required. Upper part made of extruded polycarbonate profile, with UV filter, in gray and lower part made of opal polycarbonate, to guarantee optimal light distribution. End cap made of extruded polycarbonate with UV protection. Stainless steel fixing springs for fixing to the ceiling. Specially designed for installation in spaces such as warehouses, corridors, utility rooms, parking lots, etc...

Warranty: 3 years

PHYSICAL DATA

Color	Gris
Material	Policarbonato
Diffuser material	Policarbonato Opal
Frame material	Policarbonato
Reflector material	Aluminio
Driver/equipment included	Yes
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP65
Degree of IK protection	IK08
Operating temperature	-25 ~ 35 °C

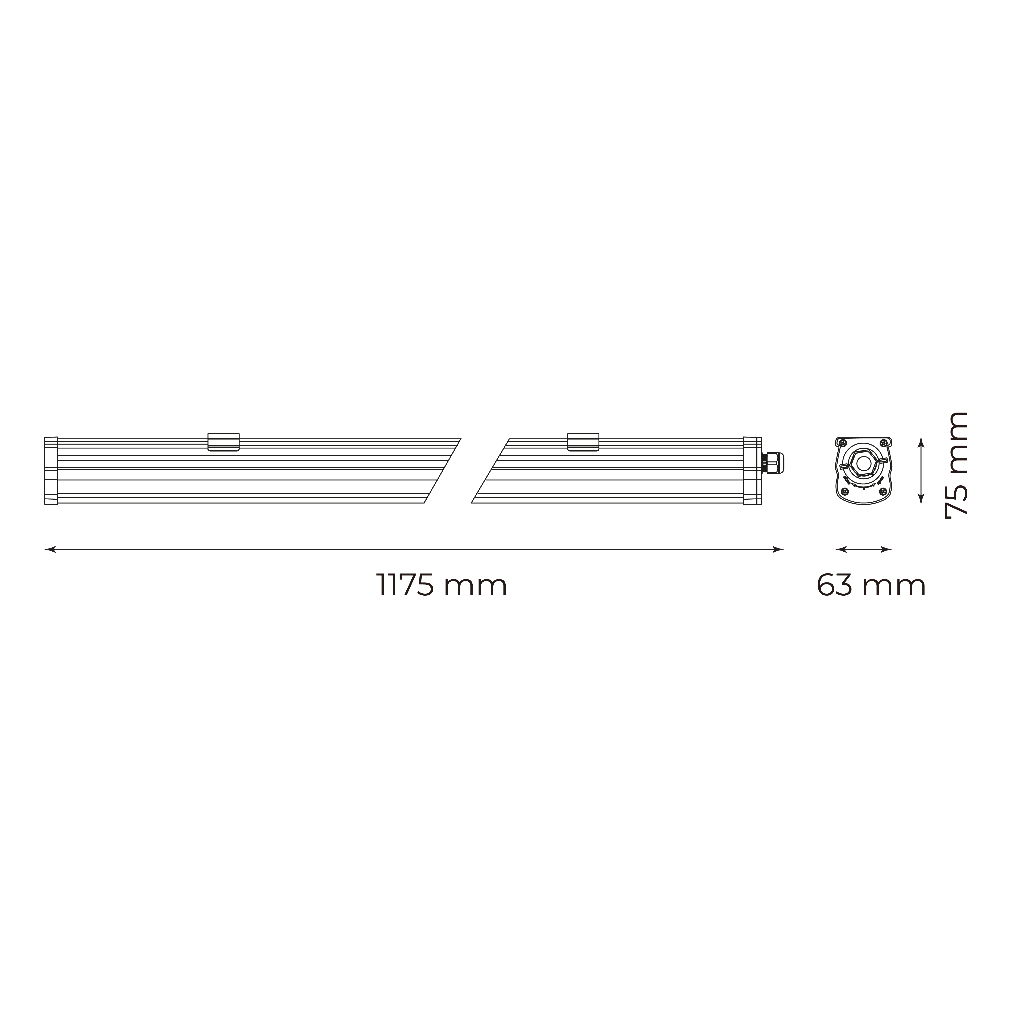

DIMENSIONAL DATA

Type of Installation	Surface
Format	1x1500
Measure	1.456 mm
Width	63 mm
High/Depth:	75 mm
Weight	1,52 Kg

OPERATING DATA

Color temperature	4.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Color lamp/application	Neutral white
Luminous flux	6.500 lm
Luminous efficacy	130 lm/W

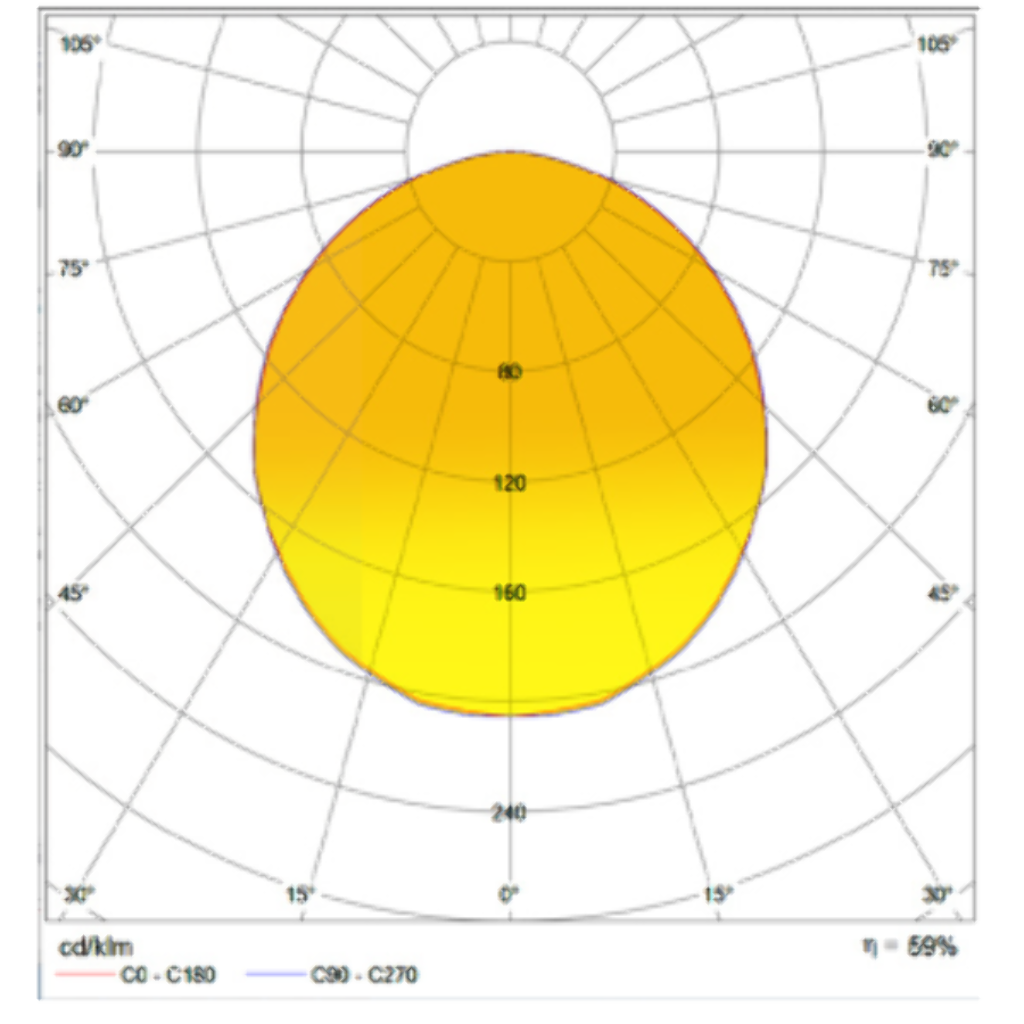

Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	120 °
Unified glare rating	<20
Number of LEDs:	50
LED type	Mód. SMD2835 LED
Number of lamps	1 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	50.000 h L80/B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	50 W
Power factor	0,90
Voltage	220 - 240 V
Frequency	50 - 60 Hz
Insulation class	Class
Overload protection	Yes
