SPV-LED+SP6

27 W
4.000 - 6.000 K
3.000 lm
IP20
UGR <19
30.000 h
Opening: 90 °
-10 a 50 °C
IK04
CRI >80
GR 0

Ref: 10130900

Downloads:

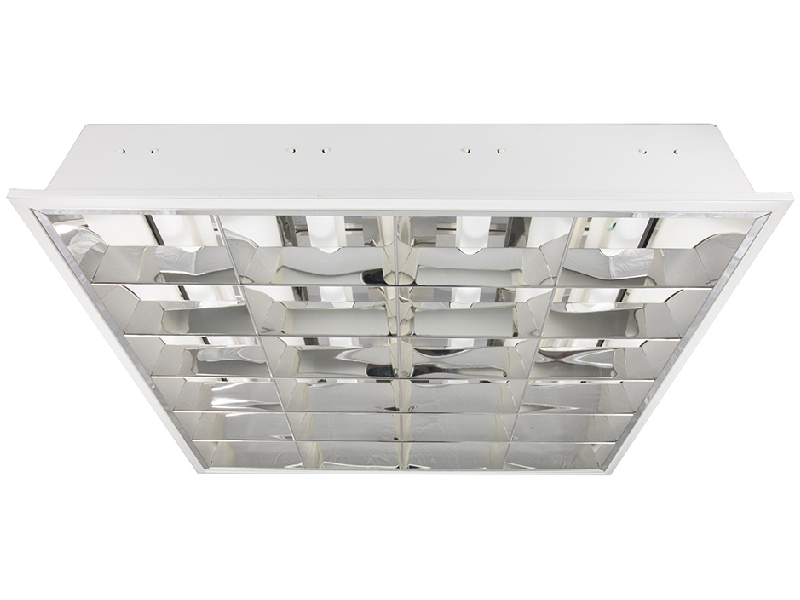

Recessed interior luminaire SPV-LED 3x9W + SP6

• Family of versatile recessed luminaires, adaptable to any standard ceiling on the market, including profiled and smooth plaster ceilings. • Light source: T8 LED tube with integrated power supply. • SP6 optic: Double parabolic optical diffuser made of polished aluminum, consisting of longitudinal and transverse parabolic reflectors, providing high performance and low luminance. It is attached to the body using tilting springs that allow it to be folded laterally, facilitating installation and maintenance by a single person. Ideal for offices, schools, etc. • Accessories: Presence detector, K1E (1-Hour LED Tube Emergency Kit), etc.

Warranty: 3 years

PHYSICAL DATA

Color	White
Material	Sheet steel
Diffuser material	Aluminium
Frame material	Sheet steel
Reflector material	Aluminium
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP20
Degree of IK protection	IK04
Operating temperature	-10 ~ 50 °C

DIMENSIONAL DATA

Type of Installation	Embed
Format	Square
Outside measurement	597 mm
Cutting measure	585 mm
High/Depth:	100 mm

OPERATING DATA

Color temperature	4.000 - 6.000 K
Chromatic reproduction index	>80
MacAdam grouping	3
Luminous flux	3.000 lm
Luminous efficacy	111,11 lm/W
Optical distribution	Direct
Optical Symmetry	Extensive
Opening angle	90 °
Unified glare rating	<19
Number of LEDs:	24
LED type	Chip LED SMD 2835
Number of lamps	3 (included)
Type of lamp	T8
Lampholder	G13
Replaceable lamp	By user
Life time	30.000 h L70B10

ELECTRICAL DATA

Lighting technology	Led
Maximum power	27 W
Power factor	0,80
Voltage	220 - 240 V
Frequency	50 - 60 Hz
Insulation class	Class
