GUADALEMA SES

3 W
3.000 K
265 lm
IP65
UGR <21
60.000 h
-10 a 45 °C
IK08
CRI >90
GR 1

Ref: 71900330

Downloads:

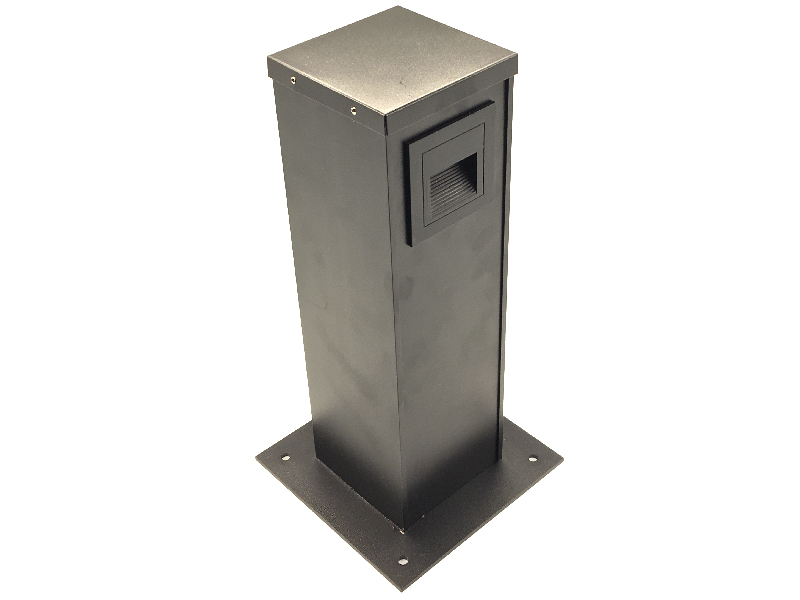

Baliza asim. GUADALEMA SES 3W 3000K 400mm

Familia de balizas rectangulares LED, diseñada para iluminar cualquier espacio exterior de zonas residenciales. Cuerpo fabricado en Aluminio de primera calidad. Base de fijación al suelo fabricada en aleación de aluminio para su instalación en pavimento. Diseñada para iluminación rasante gracias a su difusión asimétrica.

Warranty: 5 years

PHYSICAL DATA

Color	Gris/Blanco
Material	Aluminio
Diffuser material	Policarbonato Opal
Frame material	Aluminio
Reflector material	Aluminio
Driver/equipment included	Yes
Type driver/equipment	LED
Movement	Fixed
Degree of IP protection	IP65
Degree of IK protection	IK08
Operating temperature	-10 ~ 45 °C

DIMENSIONAL DATA

Type of Installation	Surface
Format	Rectangular
Measure	120 mm
Width	120 mm
High/Depth:	400 mm
Head measurement	70 mm
Type of connection to the support	Cuadrada
Connection measurement	200

OPERATING DATA

Color temperature	3.000 K
Chromatic reproduction index	>90
MacAdam grouping	3
Luminous flux	265 lm
Luminous efficacy	88,33 lm/W
Optical distribution	Direct
Optical Symmetry	Asymmetrical
Unified glare rating	<21
Number of LEDs:	1
LED type	Módulo SMD LED
Number of lamps	1 (included)
Type of lamp	LED module
Replaceable lamp	Not
Life time	60.000 h L90B10

ELECTRICAL DATA

Lighting technology	Led
Consumed power	3 W
Power factor	0,95
Voltage	176 - 265 V
Frequency	50 - 60 Hz
Insulation class	Class
