SURF CLEAN

 SURF CLEAN

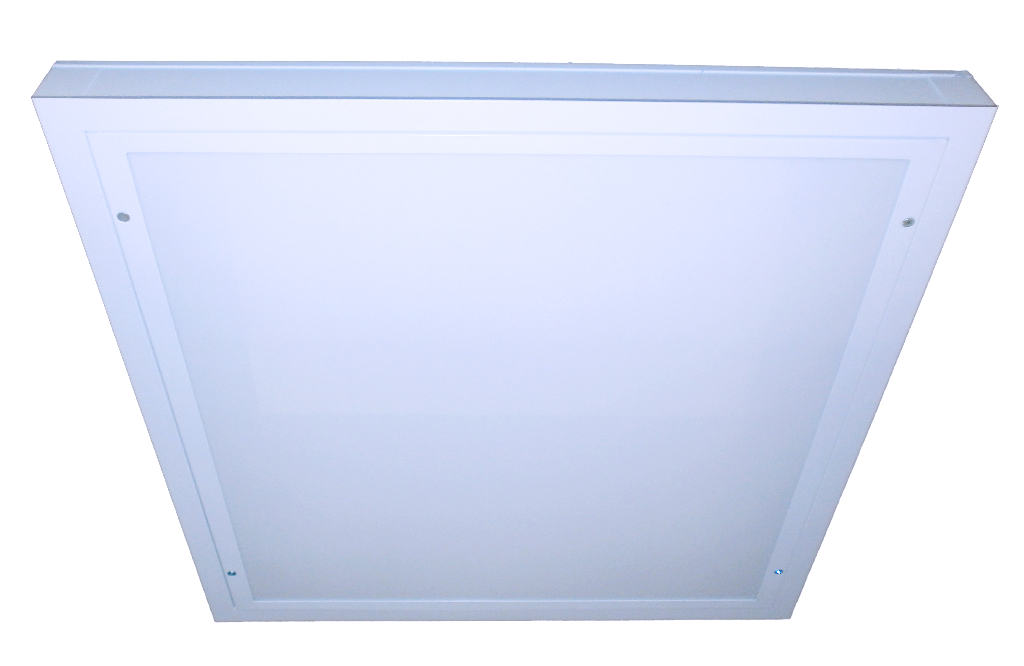

Family of surface-mounted luminaires made of top-quality sheet steel.
Recordable from the bottom.
The body and diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanes, hydrogen peroxide, bactilysine, surfalyse, etc...
Specially designed to illuminate super aseptic spaces up to Class A, such as clean rooms, laboratories, handling areas, etc...
The diffuser is mounted on a frame, it can be opal or transparent. It is fixed by four screws to the luminaire.
Light source: Lightbar linear module or SMD LED panel and integrated driver.
SV0 optic: Frost White Special LED diffuser, guarantees great visual comfort and optimal light distribution.
Accessories: RA (1-10V analog regulation), RDali (Dali Digital Regulation), Light sensor, 1 hour emergency kit, etc...
ImagenReferenceDescriptionLinks
Data sheet
63521240SURF CLEAN PANEL 2x12W 4000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63521250SURF CLEAN PANEL 2x12W 5000K 635x335mm IP66Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63521540SURF CLEAN PANEL 2x15W 4000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63521550SURF CLEAN PANEL 2x15W 5000K 635x335mm IP66Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63520940SURF CLEAN LIGHTBAR 2x9W 4000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63520950SURF CLEAN LIGHTBAR 2x9W 5000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63530940SURF CLEAN LIGHTBAR 3x9W 4000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63530950SURF CLEAN LIGHTBAR 3x9W 5000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63541240SURF CLEAN PANEL 4x12W 4000K 635x635mm IP65Data sheetSee PDFPhotometry fileDownload CE Declaration of Conformity
Data sheet
63541250SURF CLEAN PANEL 4x12W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63541540SURF CLEAN PANEL 4x15W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63541550SURF CLEAN PANEL 4x15W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63505940SURF CLEAN LIGHTBAR 5x9W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63505950SURF CLEAN LIGHTBAR 5x9W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63506940SURF CLEAN LIGHTBAR 6x9W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63506950SURF CLEAN LIGHTBAR 6x9W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63507940SURF CLEAN LIGHTBAR 7x9W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63507950SURF CLEAN LIGHTBAR 7x9W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63504940SURF CLEAN LIGHTBAR 4x9W 4000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63504950SURF CLEAN LIGHTBAR 4x9W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63560940SURF CLEAN LIGHTBAR 6x9W 4000K 1235x335mm IP65Data sheetSee PDFPhotometry fileDownload CE Declaration of Conformity
Data sheet
63560950SURF CLEAN LIGHTBAR 6x9W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63522440SURF CLEAN PANEL 2x24W 4000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63522450SURF CLEAN PANEL 2x24W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63523040SURF CLEAN PANEL 2x30W 4000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63523050SURF CLEAN PANEL 2x30W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63542440SURF CLEAN PANEL 4x24W 4000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63542450SURF CLEAN PANEL 4x24W 5000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63543040SURF CLEAN PANEL 4x30W 4000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
63543050SURF CLEAN PANEL 4x30W 5000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
