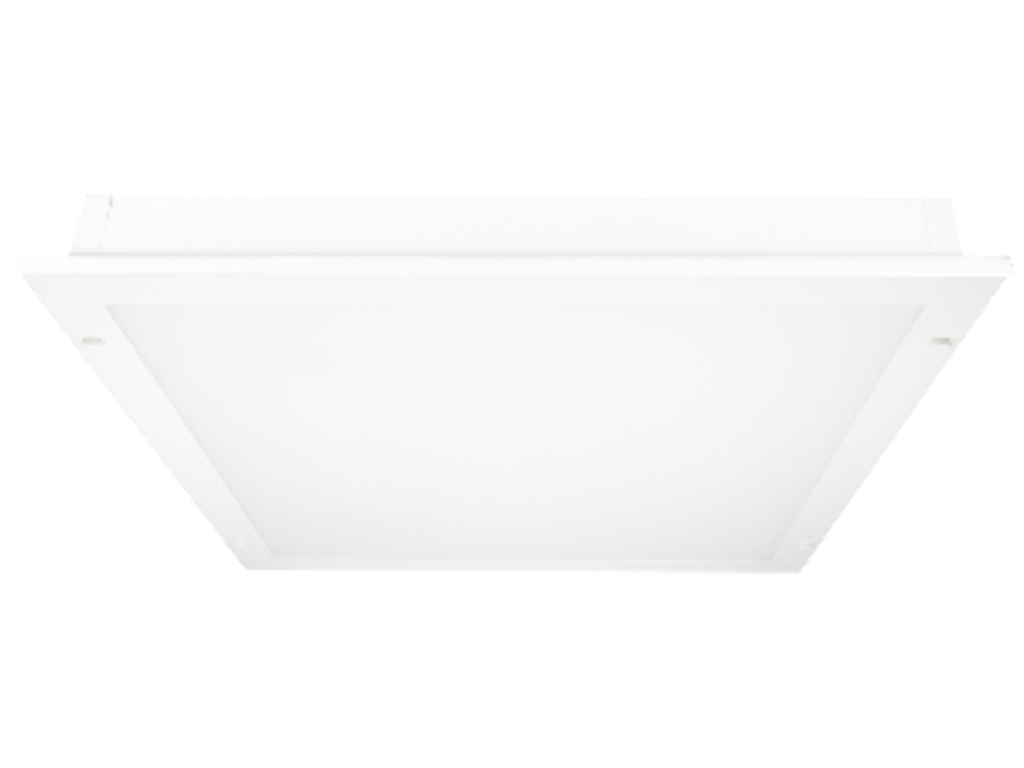

Family of recessed luminaires for sandwich panel, plasterboard or plaster ceilings with light sources specially designed to achieve greater uniformity and not create shadows.
The body and diffuser of the panel are prepared to withstand chemical agents such as: orthophosphoric acid, ethanol, surfanes, hydrogen peroxide, bactilysine, surfalyse, etc...
Recordable from the bottom of the luminaire.
Designed to illuminate kitchens, clean rooms, laboratories, handling areas, etc...
The diffuser is mounted on a frame, it can be opal or transparent. It is fixed by four screws to the luminaire.
Light source: Lightbar linear module or SMD LED panel and integrated driver.
SV0 optic: Frost White Special LED diffuser, guarantees great visual comfort and optimal light distribution.
Accessories: RA (Analogue Regulation 1-10V), RDali (Digital Regulation Dali). Light sensor, Emergency kit, etc...
ImagenReferenceDescriptionLinks
Data sheet
61821240CLEAN REGULAR PANEL 2x12W 4000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61821250CLEAN REGULAR PANEL 2x12W 5000K 635x335mm IP66Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61821540CLEAN REGULAR PANEL 2x15W 4000K 635x335mm IP66Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61821550CLEAN REGULAR PANEL 2x15W 5000K 635x335mm IP66Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61820940CLEAN REGULAR LIGHTBAR 2x9W 4000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61820950CLEAN REGULAR LIGHTBAR 2x9W 5000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61830940CLEAN REGULAR LIGHTBAR 3x9W 4000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61830950CLEAN REGULAR LIGHTBAR 3x9W 5000K 635x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61841240CLEAN REGULAR PANEL 4x12W 4000K 635x635mmData sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61841250CLEAN REGULAR PANEL 4x12W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61841540CLEAN REGULAR PANEL 4x15W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61841550CLEAN REGULAR PANEL 4x15W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61805940CLEAN REGULAR LIGHTBAR 5x9W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61805950CLEAN REGULAR LIGHTBAR 5x9W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61806940CLEAN REGULAR LIGHTBAR 6x9W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61806950CLEAN REGULAR LIGHTBAR 6x9W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61807940CLEAN REGULAR LIGHTBAR 7x9W 4000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61807950CLEAN REGULAR LIGHTBAR 7x9W 5000K 635x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61804940CLEAN REGULAR LIGHTBAR 4x9W 4000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61804950CLEAN REGULAR LIGHTBAR 4x9W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61860940CLEAN REGULAR LIGHTBAR 6x9W 4000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61860950CLEAN REGULAR LIGHTBAR 6x9W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61822440CLEAN REGULAR PANEL 2x24W 4000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61822450CLEAN REGULAR PANEL 2x24W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61823040CLEAN REGULAR PANEL 2x30W 4000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61823050CLEAN REGULAR PANEL 2x30W 5000K 1235x335mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61842440CLEAN REGULAR PANEL 4x24W 4000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61842450CLEAN REGULAR PANEL 4x24W 5000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61843040CLEAN REGULAR PANEL 4x30W 4000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
Data sheet
61843050CLEAN REGULAR PANEL 4x30W 5000K 1235x635mm IP65Data sheetSee PDFDownload CE Declaration of Conformity
