DETECTORES

Imagen del artículo 90100025
IP44
50.000 h
-20 a 40 °C
IK08
GR 1


Ref: 90100025

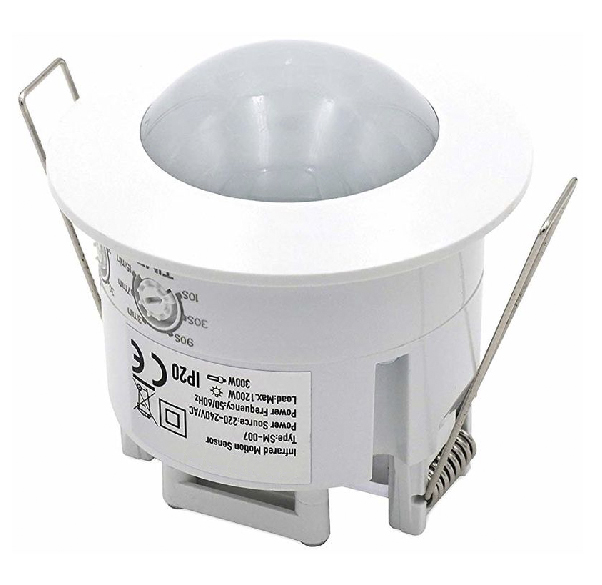

Presence detector

Presence detectors for all our luminaires

PHYSICAL DATA
ColorBlanco
MaterialPolicarbonato
Diffuser materialPolicarbonato Prisma
Frame materialPolicarbonato
MovementFixed
Degree of IP protectionIP44
Degree of IK protectionIK08
Operating temperature-20 ~ 40 °C

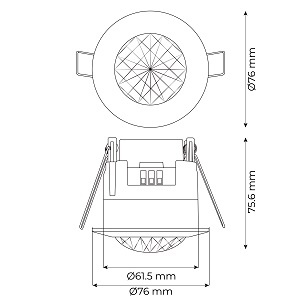

DIMENSIONAL DATA
Type of InstallationEmbed
FormatCircular
External diameter76 mm
Cutting diameter61 mm
High/Depth: 75 mm
OPERATING DATA
Replaceable lampBy user
Life time50.000 h
ELECTRICAL DATA
Voltage220 - 240 V
Frequency50 - 60 Hz
Insulation classClass
REGULATORY COMPLIANCE
CE markingYes
RoHS compliantYes
RecyclableYes
Selective collectionYes
Environmentally friendlyYes
Photobiological safetyGR 1
Mounting on flammable surfaceNot
Easy installationYes
Made in SpainNot
